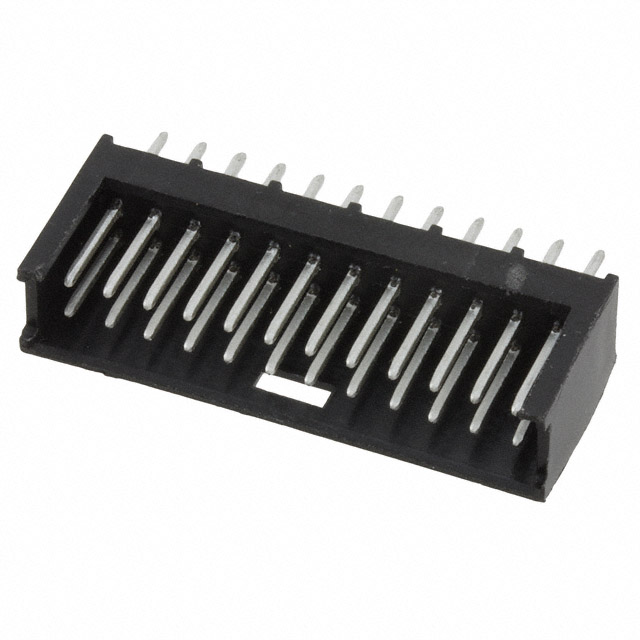

280521-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Contact Finish Thickness - Post :

118.1μin 3.00μm

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

UL Flammability Code :

94V-0

Insulation Material :

Thermoplastic

Operating Temperature :

-40°C~80°C

Factory Lead Time :

33 Weeks

Shrouded End Dimension :

1.65 mm

Contact Length - Post :

0.138 3.50mm

Keyed :

No

Overall Contact Length :

0.563 14.30mm

Lead Length :

3.5052mm

Contact Type :

Male Pin

Row Spacing - Mating :

0.100 (2.54mm)

Length :

33.1mm

Plating Thickness :

3.5μm

Mixed Contacts :

No

Termination :

Solder

Contact Shape :

Square

IEC Conformance :

No

Number of Positions :

24

Contact Gender :

Male

Published :

2001

PCB Mounting Orientation :

Vertical

Shrouding :

Shrouded - 3 Wall

MIL Conformance :

No

DIN Conformance :

No

Series :

AMPMODU Mod II

Number of Positions Loaded :

All

ELV :

Compliant

Packaging :

Bulk

Mating Contact Pitch :

0.1 inch

RoHS Status :

RoHS Compliant

Number Of PCB Rows :

2

Depth :

7mm

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Contact Length - Mating :

0.260 6.60mm

Material Flammability Rating :

UL94 V-0

Pitch - Mating :

0.100 2.54mm

Number of Conductors :

ONE

REACH SVHC :

Unknown

Number of Rows :

2

Fastening Type :

Detent Lock

Mounting Type :

Through Hole

Current Rating (Amps) :

3A

Style :

Board to Board or Cable

Insulation Height :

0.496 12.60mm

Approval Agency :

CSA

Contact Material :

Brass

Dielectric Withstanding Voltage :

750VAC V

PCB Contact Pattern :

RECTANGULAR

Housing Color :

Black

Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Option :

GENERAL PURPOSE

Connector Type :

Header

Pbfree Code :

yes

Contact Finish - Mating :

Tin

Polarization Key :

POLARIZED HOUSING

Mating Post Length :

6.604mm

Filter Feature :

No

Voltage - Rated :

40V

Mount :

Through Hole
