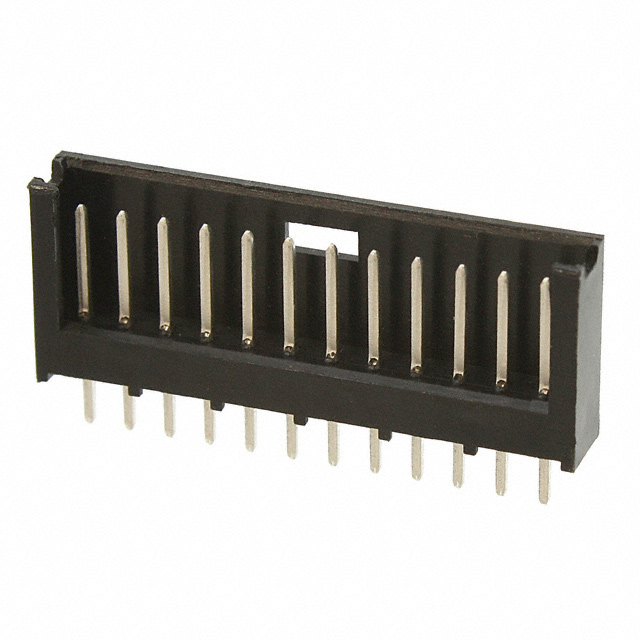

280520-1
Or copy the link below:
- Mfr.Part #
- 280520-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 12POS 2.54MM
- Stock
- 1,106
- In Stock ：
- 1,106
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Voltage - Rated AC :
- 250V
- Pitch - Mating :
- 0.100 2.54mm
- Current Rating :
- 3A
- Contact Length - Post :
- 0.138 3.50mm
- Factory Lead Time :
- 33 Weeks
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Contact Shape :
- Square
- Filter Feature :
- No
- Approval Agency :
- CSA
- Lead Free :
- Lead Free
- Insulation Material :
- Thermoplastic
- Published :
- 2001
- Gender :
- Male
- Contact Current Rating :
- 3A
- Lead Pitch :
- 2.54mm
- Mount :
- Through Hole
- Voltage - Rated DC :
- 250V
- Row Spacing :
- 2.54 mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Shrouding :
- Shrouded - 3 Wall
- Contact Length - Mating :
- 0.260 6.60mm
- Contact Type :
- Male Pin
- Length :
- 33.1mm
- Depth :
- 5mm
- Termination :
- Solder
- Number of Rows :
- 1
- Mating Post Length :
- 6.604mm
- Mounting Type :
- Through Hole
- Packaging :
- Bulk
- Insulation Height :
- 0.496 12.60mm
- Series :
- AMPMODU Mod II
- Option :
- GENERAL PURPOSE
- Housing Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Shrouded End Dimension :
- 1.65 mm
- REACH SVHC :
- Unknown
- Mixed Contacts :
- No
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Plating Thickness :
- 3.5μm
- IEC Conformance :
- No
- DIN Conformance :
- No
- Lead Length :
- 3.5052mm
- Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Number of Positions :
- 12
- Fastening Type :
- Detent Lock
- Orientation :
- Vertical
- Overall Contact Length :
- 0.563 14.30mm
- High Temperature Housing :
- No
- Contact Finish - Mating :
- Tin
- Style :
- Board to Board or Cable
- Number of Poles :
- 12
- UL Flammability Code :
- 94V-0
- Pbfree Code :
- yes
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~80°C
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Header
- ELV :
- Compliant
- Working Voltage :
- 250V
- Contact Material :
- Brass
- Datasheets
- 280520-1
AMPMODU Mod II Series 1-Row Header Solder Brass Bulk Through Hole Tin Thermoplastic 12-Position Board to Board or Cable 0.496 12.60mm Height
280520-1 Overview
The packaging contains Header.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number AMPMODU Mod II belongs to the AMPMODU Mod II Series.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~80°C.
280520-1 Features
AMPMODU Mod II series
280520-1 Applications
There are a lot of TE Connectivity AMP Connectors
280520-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
