280509-1
Or copy the link below:
- Mfr.Part #
- 280509-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 18POS 2.54MM
- Stock
- 4,249
- In Stock ：
- 4,249
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Lead Length :
- 3.5052mm
- Mating Post Length :
- 6.604mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- AMPMODU Mod II
- Contact Material :
- Brass
- IEC Conformance :
- No
- ELV :
- Compliant
- Connector Type :
- Header
- Flammability Rating :
- UL94 V-0
- Style :
- Board to Board or Cable
- Mixed Contacts :
- No
- Orientation :
- Vertical
- Insulation Material :
- Thermoplastic
- Shrouded End Dimension :
- 1.65 mm
- Length :
- 25.4mm
- Contact Type :
- Male Pin
- DIN Conformance :
- No
- Contact Length - Post :
- 0.138 3.50mm
- Published :
- 2001
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Termination :
- Solder
- Fastening Type :
- Detent Lock
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Contact Finish - Mating :
- Tin
- Shrouding :
- Shrouded - 3 Wall
- Current Rating :
- 3A
- Factory Lead Time :
- 33 Weeks
- Material Flammability Rating :
- UL94 V-0
- Pbfree Code :
- yes
- Mount :
- Through Hole
- Insulation Height :
- 0.496 12.60mm
- Contact Length - Mating :
- 0.260 6.60mm
- Contact Gender :
- Male
- Depth :
- 7mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Shape :
- Square
- RoHS Status :
- RoHS Compliant
- Approval Agency :
- CSA
- Number of Rows :
- 2
- Housing Color :
- Black
- Plating Thickness :
- 3.5μm
- Insulation Resistance :
- 1GOhm
- Contact Resistance :
- 15mOhm
- High Temperature Housing :
- No
- Number of Positions Loaded :
- All
- Filter Feature :
- No
- UL Flammability Code :
- 94V-0
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole
- MIL Conformance :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Number of Positions :
- 18
- Overall Contact Length :
- 0.563 14.30mm
- Voltage - Rated :
- 40V
- Material :
- Thermoplastic
- Operating Temperature :
- -40°C~80°C
- Datasheets
- 280509-1

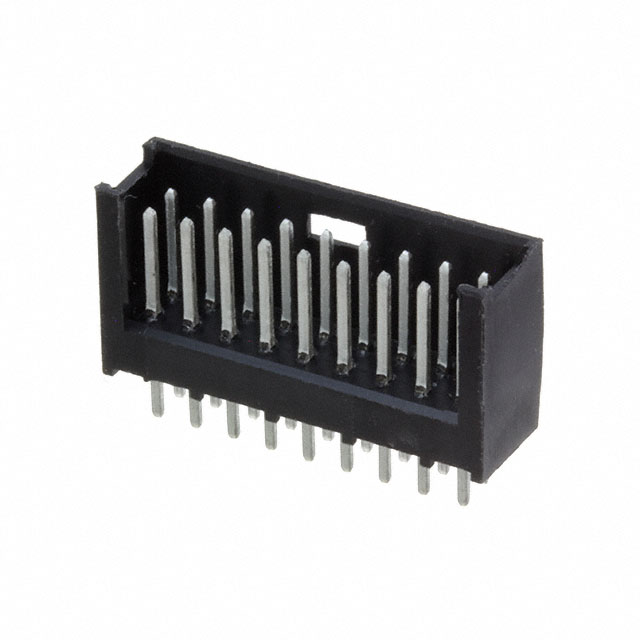

AMPMODU Mod II Series 2-Row Header Solder Brass Bulk Through Hole Tin Thermoplastic 18-Position Board to Board or Cable 0.496 12.60mm Height
280509-1 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the AMPMODU Mod II Series.By Through Hole, the part is mounted.Operating temperature is set to -40°C~80°C.
