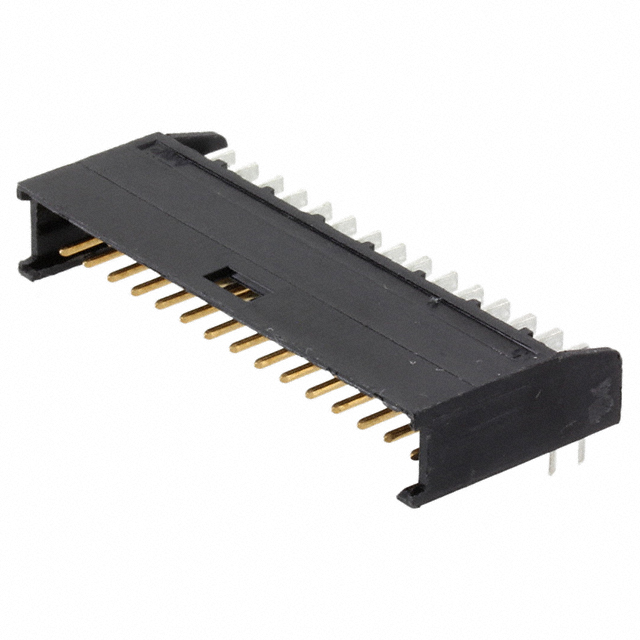

280392-2
Or copy the link below:
- Mfr.Part #
- 280392-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 30POS 2.54MM
- Stock
- 42,345
- In Stock ：
- 42,345
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Mating Post Length :
- 6.604mm
- Voltage - Working :
- 250V
- Contact Rating (Current) :
- 3A
- Color :
- Black
- Number of Positions :
- 30
- Flammability Rating :
- UL94 V-0
- Pitch :
- 2.54mm
- Max Operating Temperature :
- 105°C
- Contact Shape :
- Round
- HTS Code :
- 8536.69.40.40
- Contact Length - Mating :
- 6.604mm
- Additional Feature :
- AMPMODU, SHROUDED
- Mount :
- Through Hole
- Contact Pattern :
- RECTANGULAR
- RoHS Status :
- RoHS Compliant
- PCB Mounting Orientation :
- RIGHT ANGLE
- Dielectric Withstanding Voltage :
- 1050VAC V
- Contact Material :
- Brass
- IEC Conformance :
- No
- Current Rating :
- 3A
- Pbfree Code :
- yes
- Total Number of Contacts :
- 30
- Insulation Resistance :
- 5000000000Ohm
- ECCN Code :
- EAR99
- Number Of PCB Rows :
- 2
- DIN Conformance :
- No
- Contact Gender :
- Male
- UL Flammability Code :
- 94V-0
- Contact Finish - Mating :
- GOLD (15)
- PCB Contact Pattern :
- RECTANGULAR
- Filter Feature :
- No
- Published :
- 2001
- Number of Conductors :
- ONE
- Keyed :
- No
- Termination :
- Solder, Through Hole
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- No
- Row Spacing - Mating :
- 2.54 mm
- MIL Conformance :
- No
- ELV :
- Compliant
- Length :
- 40.7mm
- Body/Shell Style :
- Receptacle
- Voltage - Rated AC :
- 250V
- Shrouded End Dimension :
- 1.65 mm
- Lead Length :
- 3.5052mm
- Min Operating Temperature :
- -65°C
- Orientation :
- RIGHT ANGLE
- Contact Style :
- SQ PIN-SKT
- Number of Rows :
- 2
- Approval Agency :
- CSA
- Housing Material :
- Thermoplastic
- Option :
- GENERAL PURPOSE
- Depth :
- 17.4mm
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Lead Pitch :
- 2.54mm
- Connector Type :
- Header, Pin, Plug
- JESD-609 Code :
- e4
- Packaging :
- Box
- Plating Thickness :
- 2.5μm
- Factory Lead Time :
- 24 Weeks
- Rated Current (Signal) :
- 3A
- REACH SVHC :
- Unknown
- Contact Plating :
- Gold, Tin
- Datasheets
- 280392-2
2-Row Header, Pin, Plug Solder, Through Hole Brass Box GOLD (15) 30-Position
280392-2 Overview
This product is packaged in a Header, Pin, Plug box.An Box case is utilized for packaging the product.Furthermore, there are other features such as AMPMODU, SHROUDED, to name a few.Use it below 105°C.A minimum temperature of -65°C must be maintained for the operation of this device.By Through Hole, the part is mounted.
280392-2 Features
280392-2 Applications
There are a lot of TE Connectivity
280392-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
