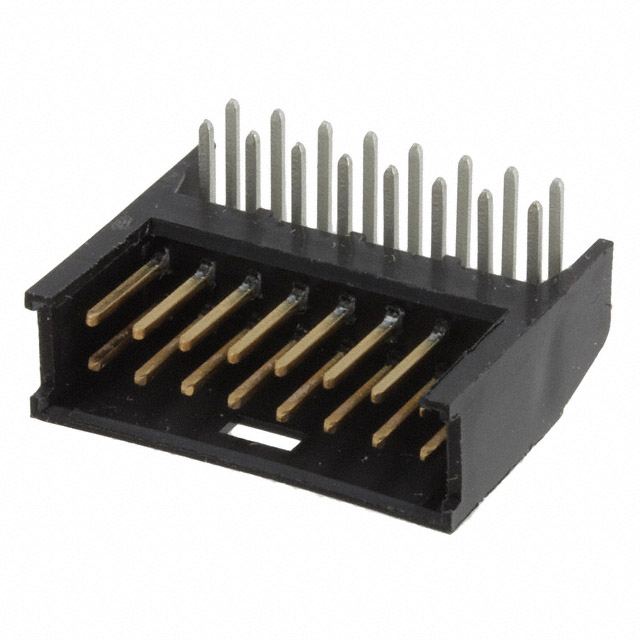

280390-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Mating Post Length :

6.604 mm

Mounting Style :

Through Hole

Mounting Type :

Through Hole

Contact Material :

Brass

Tradename :

AMPMODU

Current Rating (Max) :

3(A)

Connector System :

Board to Board, Wire to Board

Housing Material :

Thermoplastic

Lead Pitch :

2.54 mm

Brand Name :

AMP

Termination Type :

Solder

Operating Temp Range :

-65C to 105C

PCB Mounting Orientation :

RIGHT ANGLE

Color :

Black

Product Length (mm) :

22.9(mm)

Mounting :

Through Hole

Product Type :

Headers and Wire Housings

Reliability :

COMMERCIAL

Orientation :

RIGHT ANGLE

Contact Style :

SQ PIN-SKT

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

UL Flammability Code :

94V-0

Additional Feature :

AMPMODU, SHROUDED

Rated Current (Signal) :

3 A

Number Of PCB Rows :

2

Packaging :

Box

Contact Pattern :

RECTANGULAR

Contact Gender :

Male

Product Length :

22.9 mm

Voltage Rating Max :

40V

Type :

Wire to Board

Insulation Resistance :

5000000000 Ω

Mounting Angle :

RIGHT ANGLE

Operating Temperature :

-55 to 105 °C

Approvals :

CSA

Product Category :

Headers and Wire Housings

DIN Conformance :

No

High Temperature Housing :

No

REACH SVHC :

Unknown

Terminal Pitch :

2.54 mm

Termination Method :

Solder

Mounting Option 1 :

LOCKING

Housing Color :

Black

Mount :

Through Hole

Maximum Operating Temperature :

+ 105 C

Contact Finish Termination :

Tin (Sn)

Number of Contacts :

16(POS)

Option :

GENERAL PURPOSE

Contact Plating :

Gold

RoHS :

Compliant

Connector Type :

Header, Pin, Plug

Termination Style :

Solder Pin

Base/Housing Material :

Thermoplastic

Manufacturer :

TE Connectivity

Product Depth (mm) :

17.4(mm)

Body Breadth :

0.276 inch

Min Operating Temperature :

-65 °C

Termination Post Length :

3.5 mm

Depth :

17.4 mm

Shrouded End Dimension :

1.65 mm

Pbfree Code :

yes

Total Number of Contacts :

16

Mating Contact Row Spacing :

0.1 inch

ELV :

Compliant

Body Orientation :

RIGHT ANGLE

Contact Shape :

Round

Lead Length :

3.5052 mm

Pitch :

2.5400 mm

Number of Rows :

2

Body Depth :

0.685 inch

Contact Mating Length :

6.604 mm

MIL Conformance :

No

Max Operating Temperature :

105 °C

Radiation Hardening :

No

Number of Contact Rows :

2

Flammability Rating :

UL94 V-0

PCB Contact Row Spacing :

2.54 mm

Brand :

TE Connectivity

Pitch (mm) :

2.54(mm)

High Speed Serial Data Connector :

No

Filter Feature :

No

Insulator Color :

Black

Row Spacing :

2.54 mm

Reach Compliance Code :

Compliant

Product Height (mm) :

7(mm)

Subcategory :

Headers and Wire Housings

Number of Positions :

16

Current Rating :

3 A

Termination :

Through Hole

Series :

AMPMODU Mod II

Reference Standard :

UL, CSA

Lead Free :

Lead Free

Factory Lead Time :

30 Weeks, 5 Days

Length :

22.9 mm

Product :

Headers

Keyed :

No

JESD-609 Code :

e3

Mixed Contacts :

No

Minimum Operating Temperature :

- 55 C

Dielectric Withstanding Voltage :

1050VAC V

Mating Contact Pitch :

0.1 inch

Plating Thickness :

2.5 µm

Terminal Length :

0.138 inch

Gender :

Header
