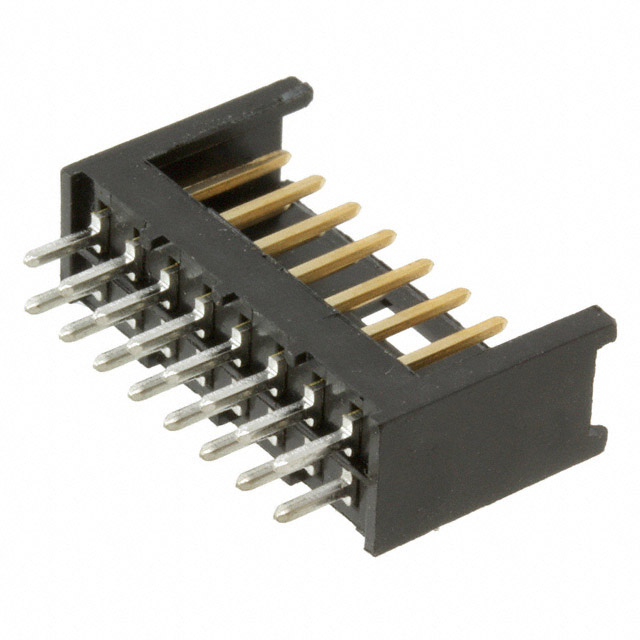

280385-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Number Of PCB Rows :

2

Operating Temperature :

-40°C~80°C

Option :

GENERAL PURPOSE

Style :

Board to Board or Cable

Contact Shape :

Square

Reliability :

COMMERCIAL

Mounting Type :

Through Hole

Number of Conductors :

ONE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Post :

Tin

PCB Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

DIN Conformance :

No

Contact Material :

Brass

Contact Finish - Mating :

Gold

ECCN Code :

EAR99

Number of Rows :

2

Series :

AMPMODU Mod II

UL Flammability Code :

94V-0

Gender :

Male

Insulation Height :

0.496 12.60mm

Mixed Contacts :

No

Dielectric Withstanding Voltage :

1000VAC V

Length - Termination :

0.138 inch

JESD-609 Code :

e4

Mounting Option 1 :

LOCKING

Factory Lead Time :

33 Weeks

Contact Finish Thickness - Mating :

15.0μin 0.38μm

Current Rating :

3A

Insulation Color :

Black

HTS Code :

8536.69.40.40

Material :

Thermoplastic

Packaging :

Bulk

Row Spacing - Mating :

0.100 (2.54mm)

Contact Resistance :

15mOhm

Overall Contact Length :

0.563 14.30mm

Contact Type :

Male Pin

Insulation Resistance :

1GOhm

Contact Finish Thickness - Post :

98.4μin 2.50μm

Published :

1997

Number of Positions Loaded :

All

IEC Conformance :

No

Contact Length - Post :

0.138 3.50mm

Pitch - Mating :

0.100 2.54mm

Rated Current (Signal) :

3A

RoHS Status :

RoHS Compliant

Body Depth :

0.496 inch

Pbfree Code :

yes

Voltage - Rated :

40V

Contact Plating :

Gold, Tin

Fastening Type :

Detent Lock

Connector Type :

Header

Lead Pitch :

2.54mm

Filter Feature :

No

Shrouding :

Shrouded - 3 Wall

Contact Length - Mating :

0.260 6.60mm

Termination :

Solder

Polarization Key :

POLARIZED HOUSING

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Mating Contact Pitch :

0.1 inch

Orientation :

Vertical

Reference Standard :

UL, CSA

Number of Positions :

16
