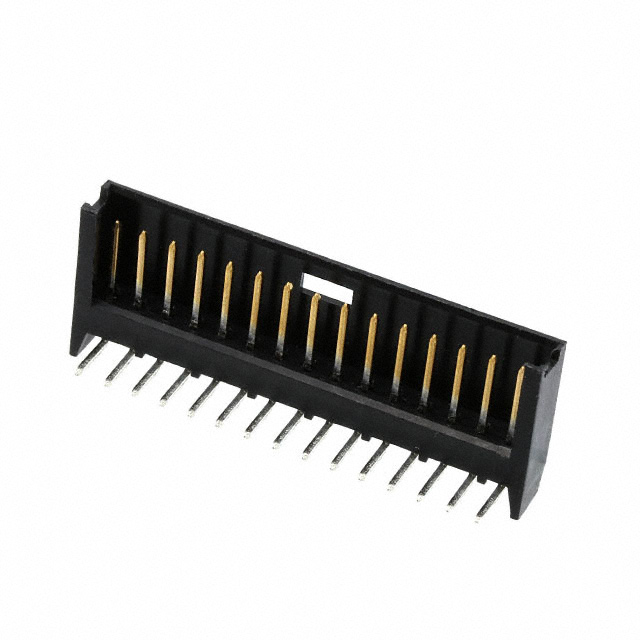

280382-2
Or copy the link below:
- Mfr.Part #
- 280382-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 15POS 2.54MM
- Stock
- 13,754
- In Stock ：
- 13,754
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- UL Flammability Code :
- 94V-0
- HTS Code :
- 8536.69.40.40
- Contact Gender :
- Male
- Mount :
- Through Hole
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Contact Style :
- SQ PIN-SKT
- Mixed Contacts :
- No
- Contact Plating :
- Gold, Tin
- Keyed :
- No
- Insulation Resistance :
- 5000000000Ohm
- Number of Rows :
- 1
- Shrouded End Dimension :
- 1.65 mm
- Contact Pattern :
- RECTANGULAR
- Orientation :
- RIGHT ANGLE
- Pitch :
- 2.54mm
- Number Of PCB Rows :
- 1
- PCB Contact Pattern :
- RECTANGULAR
- Min Operating Temperature :
- -65°C
- Housing Material :
- Thermoplastic
- DIN Conformance :
- No
- Mating Post Length :
- 6.604mm
- Body/Shell Style :
- Receptacle
- Color :
- Black
- Termination :
- Through Hole
- PCB Mounting Orientation :
- RIGHT ANGLE
- Connector Type :
- Header, Pin, Plug
- Filter Feature :
- No
- Approval Agency :
- CSA
- ELV :
- Compliant
- Contact Length - Mating :
- 6.604mm
- Plating Thickness :
- 2.5μm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Reliability :
- COMMERCIAL
- Depth :
- 14.9mm
- RoHS Status :
- RoHS Compliant
- Number of Contacts :
- 15
- Max Operating Temperature :
- 105°C
- Contact Material :
- Brass
- ECCN Code :
- EAR99
- Row Spacing - Mating :
- 2.54 mm
- Length :
- 40.7mm
- JESD-609 Code :
- e4
- Additional Feature :
- SHROUDED
- IEC Conformance :
- No
- Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Contact Shape :
- Round
- Lead Length :
- 3.5052mm
- MIL Conformance :
- No
- Packaging :
- Box
- Datasheets
- 280382-2
1-Row Header, Pin, Plug Through Hole Brass Box
280382-2 Overview
A Header, Pin, Plug package is included with it.Packaging is performed using a Box case.Additionally, there are other features, such as SHROUDED.Whenever it's below 105°C, it's best to use it.The device must operate at a temperature of -65°C at all times.Through Hole mounts the part.
280382-2 Features
280382-2 Applications
There are a lot of TE Connectivity / AMP
280382-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
