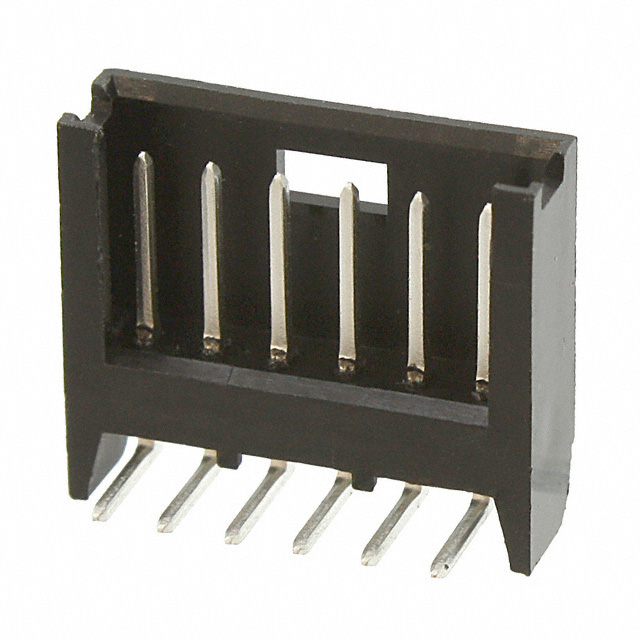

280379-1
Or copy the link below:
- Mfr.Part #
- 280379-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 6POS 2.54MM
- Stock
- 11,893
- In Stock ：
- 11,893
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Connector Type :
- Header
- Orientation :
- RIGHT ANGLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Male Pin
- Contact Material :
- Brass
- DIN Conformance :
- No
- Housing Color :
- Black
- Contact Shape :
- Square
- Reliability :
- COMMERCIAL
- Style :
- Board to Board or Cable
- Material Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 40V
- Shrouded End Dimension :
- 1.65 mm
- Number of Rows :
- 1
- Packaging :
- Bulk
- Depth :
- 14.9mm
- Number Of PCB Rows :
- 1
- Mount :
- Through Hole
- ECCN Code :
- EAR99
- Number of Conductors :
- ONE
- PCB Mounting Orientation :
- RIGHT ANGLE
- Pitch - Mating :
- 0.100 2.54mm
- Insulation Height :
- 0.197 5.00mm
- Contact Length - Post :
- 0.138 3.50mm
- Factory Lead Time :
- 33 Weeks
- Option :
- GENERAL PURPOSE
- Shrouding :
- Shrouded - 3 Wall
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Published :
- 2002
- Number of Positions :
- 6
- RoHS Status :
- RoHS Compliant
- PCB Contact Pattern :
- RECTANGULAR
- ELV :
- Compliant
- Series :
- AMPMODU Mod II
- Number of Positions Loaded :
- All
- Operating Temperature :
- -40°C~80°C
- Fastening Type :
- Detent Lock
- IEC Conformance :
- No
- Plating Thickness :
- 3.5μm
- Termination :
- Solder
- Approval Agency :
- CSA
- MIL Conformance :
- No
- Contact Gender :
- Male
- Lead Length :
- 3.5052mm
- Keyed :
- No
- Contact Length - Mating :
- 0.260 6.60mm
- REACH SVHC :
- Unknown
- Mounting Type :
- Through Hole, Right Angle
- Flammability Rating :
- UL94 V-0
- UL Flammability Code :
- 94V-0
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mating Post Length :
- 6.604mm
- Pbfree Code :
- yes
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Thermoplastic
- Lead Pitch :
- 2.54mm
- Filter Feature :
- No
- Row Spacing :
- 2.54 mm
- Insulation Resistance :
- 5000000000Ohm
- Contact Finish Thickness - Mating :
- 118.1μin 3.00μm
- Length :
- 17.8mm
- Current Rating (Amps) :
- 3A
- Mixed Contacts :
- No
- Datasheets
- 280379-1
AMPMODU Mod II Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Thermoplastic 6-Position Board to Board or Cable 0.197 5.00mm Height
280379-1 Overview
Currently, it is packaged in Header.The mounting type of the device is Through Hole, Right Angle.A Bulk case is used to package the product.A product of the AMPMODU Mod II Series, it belongs to the range of products of that series.Through Hole represents the mounting point for the part.-40°C~80°C Operating Temperature is the default operating temperature for the device.
280379-1 Features
AMPMODU Mod II series
280379-1 Applications
There are a lot of TE Connectivity AMP Connectors
280379-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
