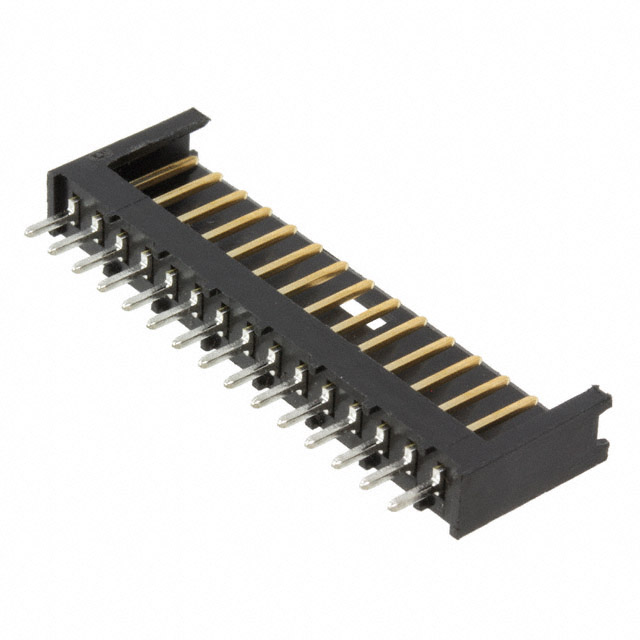

280375-2
Or copy the link below:
- Mfr.Part #
- 280375-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 15POS 2.54MM
- Stock
- 42,776
- In Stock ：
- 42,776
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Material :
- Brass
- Number Of PCB Rows :
- 1
- Mounting Type :
- Through Hole
- Overall Contact Length :
- 0.563 14.30mm
- Length :
- 40.7mm
- MIL Conformance :
- No
- HTS Code :
- 8536.69.40.40
- Insulation Resistance :
- 5000000000Ohm
- Voltage - Rated AC :
- 250V
- Contact Length - Post :
- 0.138 3.50mm
- IEC Conformance :
- No
- DIN Conformance :
- No
- PCB Mounting Orientation :
- Vertical
- Mating Post Length :
- 6.604mm
- Dielectric Withstanding Voltage :
- 750VAC V
- Published :
- 2001
- Contact Finish Thickness - Mating :
- 15.0μin 0.38μm
- Series :
- AMPMODU Mod II
- Packaging :
- Bulk
- Mixed Contacts :
- No
- Row Spacing :
- 2.54 mm
- Mount :
- Through Hole
- UL Flammability Code :
- 94V-0
- Option :
- GENERAL PURPOSE
- RoHS Status :
- RoHS Compliant
- REACH SVHC :
- Unknown
- Lead Pitch :
- 2.54mm
- Connector Type :
- Header
- ECCN Code :
- EAR99
- Number of Positions :
- 15
- ELV :
- Compliant
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Depth :
- 5mm
- Number of Conductors :
- ONE
- Current Rating :
- 3A
- Contact Type :
- Male Pin
- Factory Lead Time :
- 33 Weeks
- Shrouded End Dimension :
- 1.65 mm
- Polarization Key :
- POLARIZED HOUSING
- Lead Length :
- 3.5052mm
- Contact Finish - Mating :
- Gold
- Contact Length - Mating :
- 0.260 6.60mm
- Approval Agency :
- CSA
- Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.496 12.60mm
- Contact Shape :
- Square
- Material Flammability Rating :
- UL94 V-0
- Plating Thickness :
- 2.5μm
- Contact Gender :
- Male
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Plating :
- Gold, Tin
- Style :
- Board to Board or Cable
- Pbfree Code :
- yes
- Reliability :
- COMMERCIAL
- Termination :
- Solder
- Voltage - Rated DC :
- 250V
- Shrouding :
- Shrouded - 3 Wall
- Insulation Material :
- Thermoplastic
- Insulation Color :
- Black
- Filter Feature :
- No
- Fastening Type :
- Detent Lock
- High Temperature Housing :
- No
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Post :
- 98.4μin 2.50μm
- Operating Temperature :
- -40°C~80°C
- Number of Positions Loaded :
- All
- Contact Finish - Post :
- Tin
- PCB Contact Pattern :
- RECTANGULAR
- Number of Rows :
- 1
- Datasheets
- 280375-2
AMPMODU Mod II Series 1-Row Header Solder Brass Bulk Through Hole Gold Thermoplastic 15-Position Board to Board or Cable 0.496 12.60mm Height
280375-2 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the AMPMODU Mod II Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -40°C~80°C Operating Temperature.
280375-2 Features
AMPMODU Mod II series
280375-2 Applications
There are a lot of TE Connectivity AMP Connectors
280375-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
