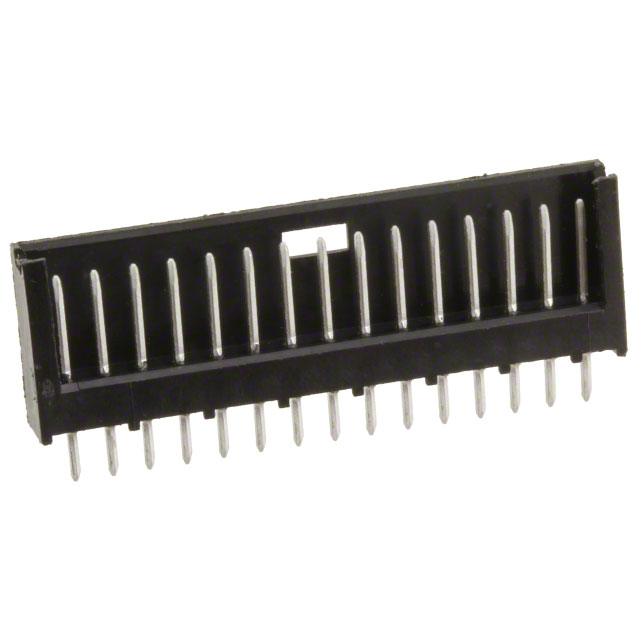

280375-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

UL Flammability Code :

94V-0

Lead Length :

3.5052mm

Contact Type :

Male Pin

Connector Type :

Header

PCB Contact Pattern :

RECTANGULAR

Number of Conductors :

ONE

Style :

Board to Board or Cable

Number Of PCB Rows :

1

Factory Lead Time :

33 Weeks

Contact Finish - Mating :

Tin

Series :

AMPMODU Mod II

Contact Shape :

Square

Packaging :

Bulk

Current Rating (Amps) :

3A

Mating Post Length :

6.604mm

Operating Temperature :

-40°C~80°C

Shrouded End Dimension :

1.65 mm

Contact Length - Post :

0.138 3.50mm

Shrouding :

Shrouded - 3 Wall

Row Spacing :

2.54 mm

ELV :

Compliant

Plating Thickness :

3.5μm

Termination :

Solder

Length :

40.7mm

Mounting Type :

Through Hole

Pitch - Mating :

0.100 2.54mm

Filter Feature :

No

Published :

2001

Number of Positions :

15

Option :

GENERAL PURPOSE

Number of Rows :

1

Depth :

5mm

Housing Color :

Black

Contact Gender :

Male

Keyed :

No

Material Flammability Rating :

UL94 V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Insulation Material :

Thermoplastic

Contact Finish Thickness - Post :

118.1μin 3.00μm

Pbfree Code :

yes

Approval Agency :

CSA

Contact Material :

Brass

PCB Mounting Orientation :

Vertical

Fastening Type :

Detent Lock

RoHS Status :

RoHS Compliant

Contact Length - Mating :

0.260 6.60mm

Mount :

Through Hole

Overall Contact Length :

0.563 14.30mm

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Number of Positions Loaded :

All

Voltage - Rated :

40V

Mixed Contacts :

No

Insulation Height :

0.496 12.60mm
