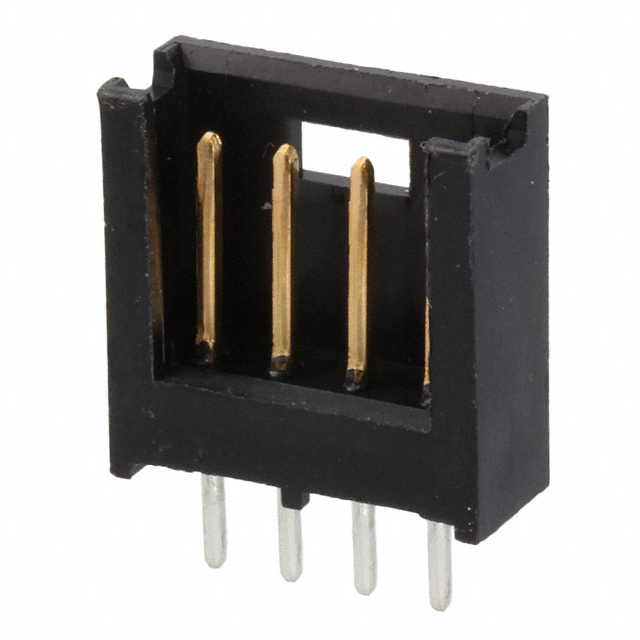

280371-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Keyed :

No

Series :

AMPMODU Mod II

Insulation Material :

Thermoplastic

Filter Feature :

No

Number Of PCB Rows :

1

Contact Finish Thickness - Post :

98.4μin 2.50μm

Number of Positions :

4

Fastening Type :

Detent Lock

Polarization Key :

POLARIZED HOUSING

Lead Length :

3.5052mm

Voltage - Rated :

40V

IEC Conformance :

No

Mounting Type :

Through Hole

ELV :

Compliant

RoHS Status :

RoHS Compliant

Mating Post Length :

6.604mm

Material Flammability Rating :

UL94 V-0

Length :

12.7mm

Contact Length - Mating :

0.260 6.60mm

Pbfree Code :

yes

Shrouding :

Shrouded - 3 Wall

Contact Plating :

Gold, Tin

Pitch - Mating :

0.100 2.54mm

Depth :

5mm

Reliability :

COMMERCIAL

Number of Rows :

1

Lifecycle Status :

ACTIVE (Last Updated: 4 days ago)

Contact Shape :

Square

Contact Finish Thickness - Mating :

31.5μin 0.80μm

ECCN Code :

EAR99

Mixed Contacts :

No

Option :

GENERAL PURPOSE

Operating Temperature :

-40°C~80°C

Mount :

Through Hole

PCB Mounting Orientation :

Vertical

Plating Thickness :

2.5μm

Contact Type :

Male Pin

Factory Lead Time :

4 Weeks

Dielectric Withstanding Voltage :

750VAC V

Shrouded End Dimension :

1.65 mm

Number of Conductors :

ONE

Contact Material :

Brass

Contact Finish - Post :

Tin

Contact Finish - Mating :

Gold

Insulation Resistance :

5000000000Ohm

Termination :

Solder

Insulation Height :

0.496 12.60mm

Published :

2007

PCB Contact Pattern :

RECTANGULAR

Overall Contact Length :

0.563 14.30mm

JESD-609 Code :

e3

Insulation Color :

Black

Number of Positions Loaded :

All

MIL Conformance :

No

Packaging :

Bulk

Current Rating (Amps) :

3A

DIN Conformance :

No

Style :

Board to Board or Cable

Connector Type :

Header

Flammability Rating :

UL94 V-0

Approval Agency :

CSA

Row Spacing :

2.54 mm

Contact Gender :

Male

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Length - Post :

0.138 3.50mm
