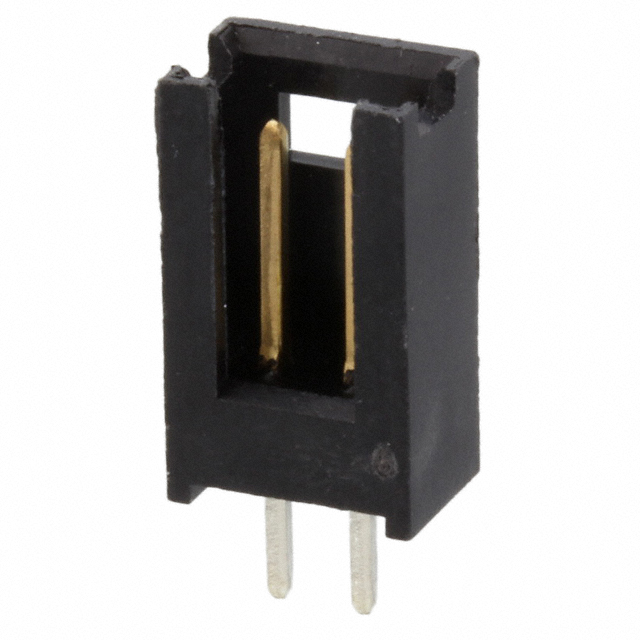

280370-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Length :

7.7mm

Depth :

5mm

Mixed Contacts :

No

Row Spacing - Mating :

2.54 mm

Lead Length :

3.5mm

Polarization Key :

POLARIZED HOUSING

Number Of PCB Rows :

1

Reference Standard :

UL, CSA

Termination :

Solder

Dielectric Withstanding Voltage :

750VAC V

Number of Rows :

1

Contact Pattern :

RECTANGULAR

Packaging :

Box

Contact Style :

SQ PIN-SKT

Insulation Resistance :

5000000000Ohm

Rated Current (Signal) :

3A

Orientation :

Straight

MIL Conformance :

No

Max Operating Temperature :

-105°C

Contact Length - Mating :

6.604mm

Flammability Rating :

UL94 V-0

Contact Material :

Brass

ECCN Code :

EAR99

Contact Gender :

Male

Additional Feature :

SHROUDED

Color :

Black

Min Operating Temperature :

-55°C

Mating Post Length :

6.6mm

High Speed Serial Data Connector :

No

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

PCB Contact Pattern :

RECTANGULAR

Body/Shell Style :

Receptacle

IEC Conformance :

No

DIN Conformance :

No

Reliability :

COMMERCIAL

Connector Type :

Male Pin

Filter Feature :

No

Number of Contacts :

2

Number of Conductors :

ONE

Housing Material :

Thermoplastic

RoHS Status :

RoHS Compliant

Contact Plating :

Gold

ELV :

Compliant

Pbfree Code :

yes

HTS Code :

8536.69.40.40

Pitch :

2.54mm

Mount :

Through Hole
