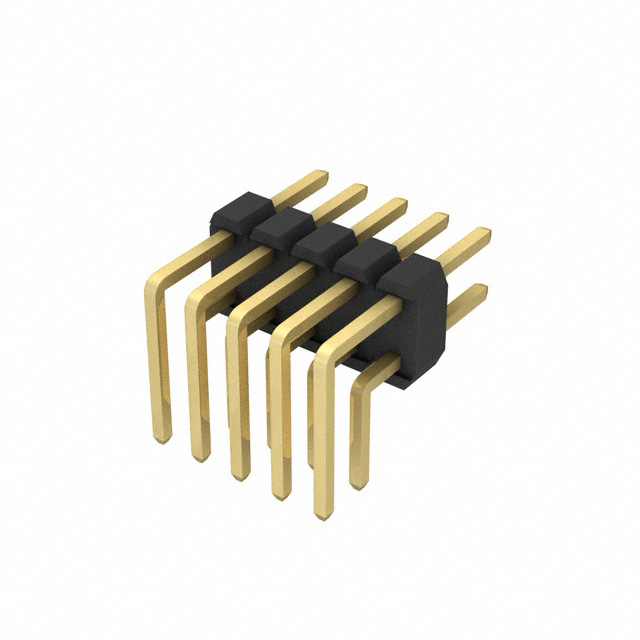

27641002RP2
Or copy the link below:
- Mfr.Part #
- 27641002RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 10POS 2MM
- Stock
- 400
- In Stock ：
- 400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Male Pins
- Pitch - Mating :
- 0.079 2.00mm
- Number of Contacts :
- 5
- Contact Gender :
- Male
- Style :
- Board to Board or Cable
- Operating Temperature :
- -40°C~105°C
- Contact Length - Post :
- 0.118 3.00mm
- Published :
- 2008
- Number of Rows :
- 2
- Mount :
- Through Hole
- Housing Color :
- Black
- Housing Material :
- Nylon
- Termination :
- Solder
- Series :
- 2764
- Lead Free :
- Lead Free
- Packaging :
- Bulk
- Mounting Type :
- Through Hole, Right Angle
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Current Rating (Amps) :
- 1A
- Contact Finish Thickness - Mating :
- Flash
- Contact Shape :
- Square
- Insulation Height :
- 0.158 4.01mm
- Lead Pitch :
- 2mm
- Fastening Type :
- Push-Pull
- Contact Length - Mating :
- 0.150 3.81mm
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Unshrouded
- Number of Positions :
- 10
- Insulation Material :
- Polyamide (PA6T), Nylon 6T
- Contact Type :
- Male Pin
- RoHS Status :
- ROHS3 Compliant
- Contact Material :
- COPPER ALLOY
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- Datasheets
- 27641002RP2
2764 Series 2-Row Header Solder Copper Alloy Bulk Through Hole, Right Angle Gold Polyamide (PA6T), Nylon 6T 10-Position Board to Board or Cable 0.158 4.01mm Height
27641002RP2 Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the 2764 Series.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.
27641002RP2 Features
2764 series
27641002RP2 Applications
There are a lot of NorComp Inc.
27641002RP2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
