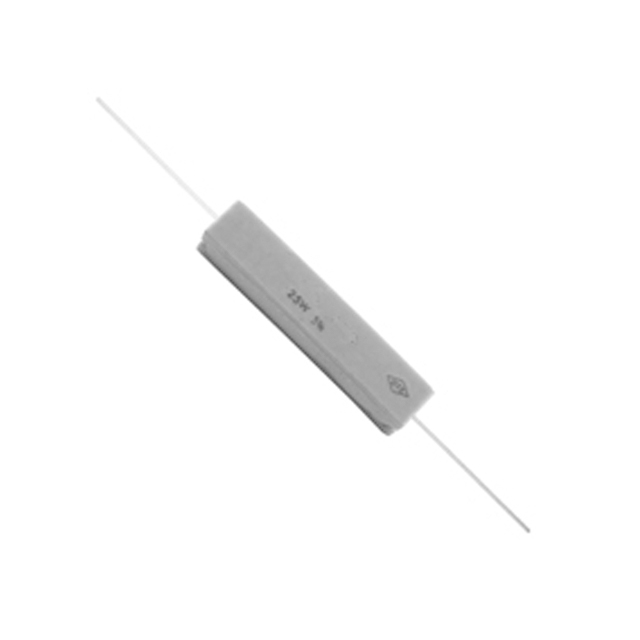

25W047

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Number of Terminations :

2

Min Operating Temperature :

-55 °C

Manufacturer :

NTE Electronics

Working Voltage :

800 V

Package / Case :

Axial

Number of Terminals :

2

Supplier Device Package :

Axial

Size / Dimension :

0.492" Square x 2.50" L (12.50mm x 63.50mm)

Features :

-

Termination :

Axial

Power Rating :

25 W

Mount :

Through Hole

Series :

-

Failure Rate :

-

Resistor Type :

FIXED RESISTOR

Construction :

Power

Voltage Rating (DC) :

800 V

Power (Watts) :

25W

Tolerance :

±5%

Technology :

Wire Wound

ECCN Code :

EAR99

Subcategory :

Fixed Resistors

Package Type :

Axial Lead

Temperature Coefficient :

±300ppm/°C

RoHS :

Compliant

Product Status :

Active

Package Height :

12.5 mm

Terminal Type :

Axial Leads

Operating Temperature :

-55°C ~ 155°C

Lead Length :

1.5

Lead Diameter :

0.04

Reach Compliance Code :

Unknown

Package Width :

12.5 mm

Max Operating Temperature :

155 °C

Wattage :

25

Resistance :

47 Ohms

HTS Code :

8533.21.00.80

Package Length :

63.5 mm

Height - Seated (Max) :

-

Size Code :

49

Composition :

Wirewound

Package :

Bag

Rated Power Dissipation (P) :

25 W
