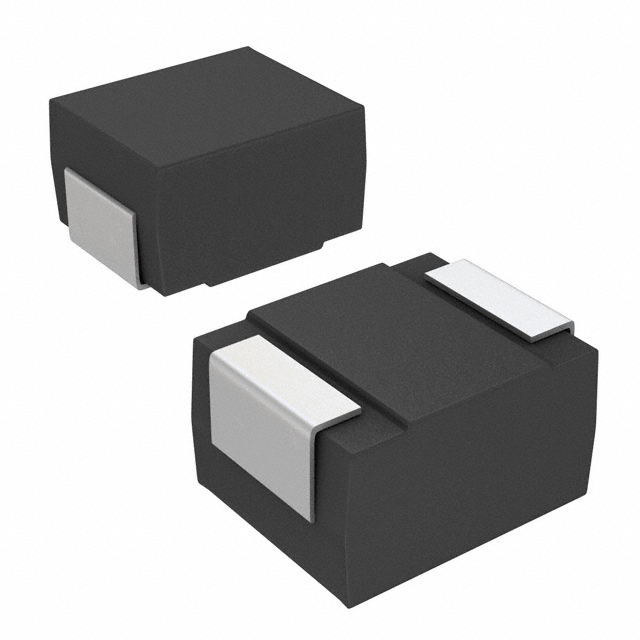

25TQC22MYFB

Manufacturer :

Panasonic

Product Category :

Tantalum - Polymer Capacitors

Mounting Type :

Surface Mount

Product Height (mm) :

1.9

IR (mA) :

1100

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Width :

2.8mm

Fail Safe with Built-in Fuse :

No

Height - Seated (Max) :

0.079 (2.00mm)

Case Code :

B2

Brand :

Panasonic

Mounting :

Surface Mount

Minimum Operating Temperature (°C) :

-55

Case Style :

Molded

Voltage :

25Vdc

High Shock and Vibrating :

No

Package / Case :

3528

Capacitance :

22µF

Product Category :

Tantalum Capacitors - Polymer

ESR (Equivalent Series Resistance) :

100mOhm @ 100kHz

RoHS Status :

RoHS Compliant

Subcategory :

Capacitors

Capacitance Tolerance :

± 20%

Product Height :

1.9mm

RoHS :

Details

Polarity :

Polar

Product Status :

Active

Height :

1.9 mm

Manufacturer Size Code :

B2

Type :

Polymer

Ratings :

-

Construction :

Flat

Base Product Number :

25TQC

ECCN (US) :

EAR99

Technology :

Polymer

Maximum Operating Temperature (°C) :

105

Lifetime @ Temp. :

2000 Hrs @ 105°C

Voltage - Rated :

25 V

Lead Spacing :

-

Maximum Operating Temperature :

+ 105 C

Leakage Current :

165 uA

Manufacturer :

Panasonic

Termination Style :

SMD/SMT

Equivalent Series Resistance Type :

Standard

Width :

2.8 mm

Product Length :

3.5mm

Maximum Dissipation Factor (%) :

10

Product Type :

Tantalum Capacitors

Operating Temperature :

-55°C ~ 105°C

Minimum Operating Temperature :

- 55 C

Length :

3.5 mm

Product Depth (mm) :

2.8

ESR :

0.1Ohm

Size / Dimension :

0.138 L x 0.110 W (3.50mm x 2.80mm)

Number of Terminals :

2

Product Length (mm) :

3.5

Ripple Current :

1.1A

Series :

TQC

Features :

GENERAL PURPOSE

Product :

Tantalum Organic Polymer Standard Grade

Size (mm) :

3.5 X 2.8 X 1.9

Capacitance Value :

22uF

Qualification :

-

ESR (Ohm) :

0.1

Packaging :

Tape and Reel

Tolerance :

20%

IL (uA) :

165

Tradename :

POSCAP
