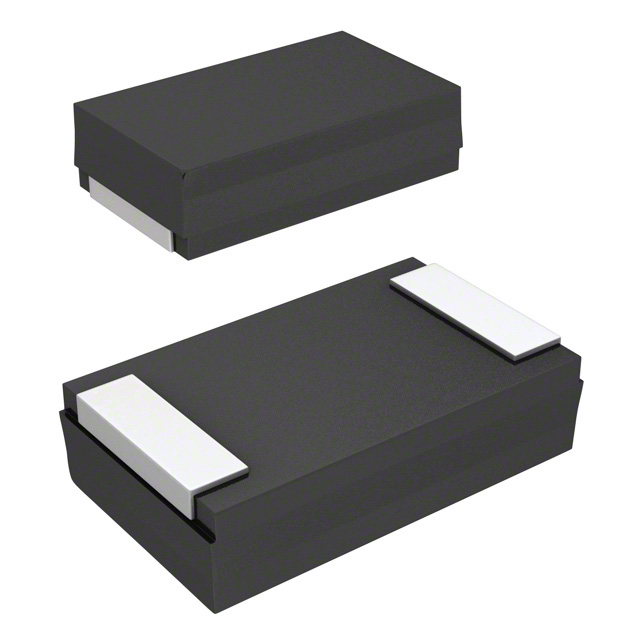

25TQC100MD3

Manufacturer :

Panasonic

Product Category :

Tantalum - Polymer Capacitors

Lead Spacing :

-

Minimum Operating Temperature :

- 55 C

Package / Case :

7343-30

Qualification :

-

Voltage :

25Vdc

Maximum Operating Temperature (°C) :

105

Series :

TQC

Capacitance Tolerance :

± 20%

Termination Style :

SMD/SMT

ESR (Ohm) :

0.06

Case Code :

D3L

Manufacturer :

Panasonic

Features :

GENERAL PURPOSE

Construction :

Flat

Ripple Current :

1.6A

Capacitance Value :

100uF

Operating Temperature :

-55°C ~ 105°C

Minimum Operating Temperature (°C) :

-55

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Product Width :

4.3mm

Case Style :

Molded

Product Height (mm) :

2.8

Width :

4.3 mm

Product Depth (mm) :

4.3

Mounting Type :

Surface Mount

ECCN (US) :

EAR99

Voltage - Rated :

25 V

Capacitance :

100μF

Tradename :

POSCAP

Number of Terminals :

2

Lifetime @ Temp. :

2000 Hrs @ 105°C

ESR (Equivalent Series Resistance) :

60mOhm @ 100kHz

Technology :

Polymer

Equivalent Series Resistance Type :

Standard

Product Height :

2.8mm

Manufacturer Size Code :

D3L

High Shock and Vibrating :

No

Maximum Operating Temperature :

+ 105 C

Size (mm) :

7.3 x 4.3 x 2.8

Length :

7.3 mm

ESR :

0.06Ohm

Product Category :

Tantalum Capacitors - Polymer

Base Product Number :

25TQC

Subcategory :

Capacitors

Type :

Polymer

Ratings :

-

Product :

Tantalum Organic Polymer Standard Grade

Height - Seated (Max) :

0.118 (3.00mm)

Fail Safe with Built-in Fuse :

No

Packaging :

Tape and Reel

Tolerance :

20%

Product Status :

Active

Product Type :

Tantalum Capacitors

Maximum Dissipation Factor (%) :

10

Product Length (mm) :

7.3

Polarity :

Polar

RoHS Status :

RoHS Compliant

Height :

2.8 mm

IR (mA) :

1600

Brand :

Panasonic

Product Length :

7.3mm

Mounting :

Surface Mount

Leakage Current :

250 uA

Size / Dimension :

0.287 L x 0.169 W (7.30mm x 4.30mm)

RoHS :

Details

IL (uA) :

250
