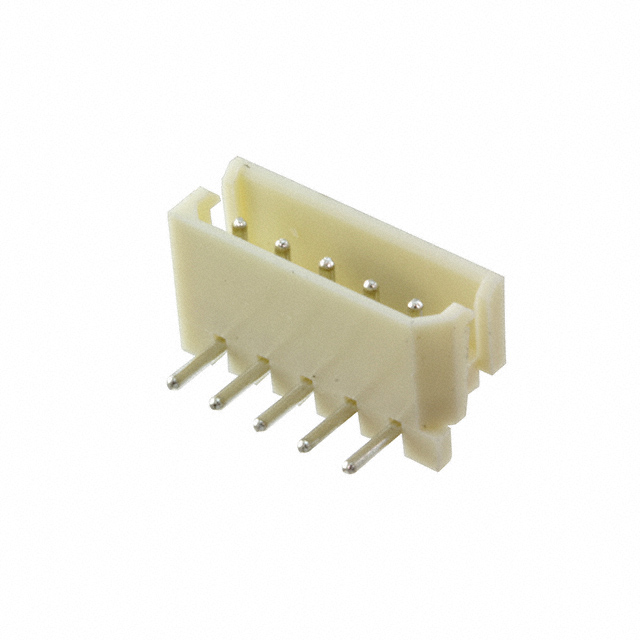

25SH-E-05-TR
Or copy the link below:
- Mfr.Part #
- 25SH-E-05-TR
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 5POS 2.5MM
- Stock
- 1,439
- In Stock ：
- 1,439
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Shrouding :
- Shrouded - 4 Wall
- Number of Rows :
- 1
- Contact Material :
- Brass
- Contact Shape :
- Circular
- Contact Finish - Mating :
- Tin
- Connector Type :
- Header
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.193 4.90mm
- Number of Positions Loaded :
- All
- Fastening Type :
- Friction Lock
- Series :
- 25SH
- Style :
- Board to Cable/Wire
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Material Flammability Rating :
- UL94 V-0
- Contact Type :
- Male Pin
- Packaging :
- Bulk
- Factory Lead Time :
- 9 Weeks
- Voltage - Rated :
- 250VAC
- Contact Length - Post :
- 0.138 3.50mm
- Insulation Color :
- Beige
- Mounting Type :
- Through Hole, Right Angle
- Operating Temperature :
- -40°C~105°C
- Pitch - Mating :
- 0.098 2.50mm
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Current Rating (Amps) :
- 3A
- Number of Positions :
- 5
- Datasheets
- 25SH-E-05-TR
25SH Series 1-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 5-Position Board to Cable/Wire 0.193 4.90mm Height
25SH-E-05-TR Overview
It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the 25SH Series of products.The device runs in -40°C~105°C Operating Temperature.
25SH-E-05-TR Features
25SH series
25SH-E-05-TR Applications
There are a lot of Adam Tech
25SH-E-05-TR Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
