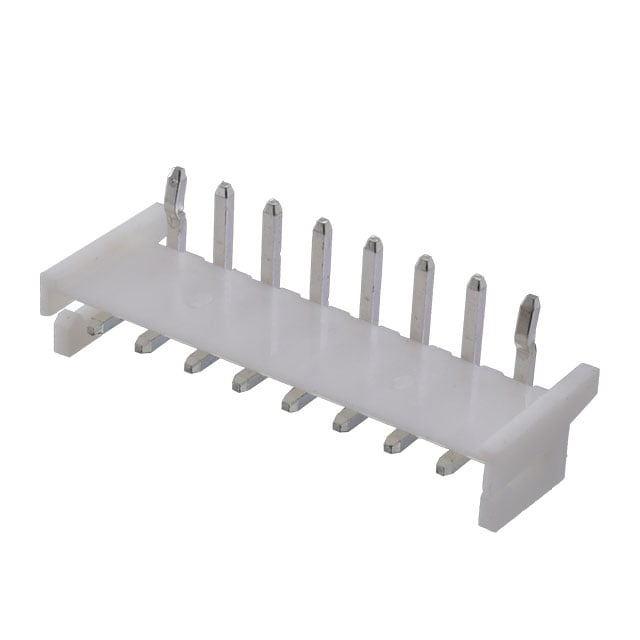

25SH-C-08-TR
Or copy the link below:
- Mfr.Part #
- 25SH-C-08-TR
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 8POS 2.5MM
- Stock
- 3,000
- In Stock ：
- 3,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Insulation Resistance :
- 500000000Ohm
- Voltage - Rated :
- 250VAC
- Number of Positions :
- 8
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole, Right Angle
- Body Depth :
- 0.256 inch
- Contact Material :
- Brass
- Style :
- Board to Cable/Wire
- Plating Thickness :
- FLASH inch
- Insulation Height :
- 0.165 4.20mm
- Reliability :
- COMMERCIAL
- Pitch - Mating :
- 0.098 2.50mm
- Series :
- 25SH
- Contact Length - Post :
- 0.130 3.30mm
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- Number of Rows :
- 1
- Mating Contact Pitch :
- 0.049 inch
- Contact Shape :
- Square
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Polarization Key :
- POLARIZED HOUSING
- Mounting Option 1 :
- LOCKING
- Reference Standard :
- UL
- Contact Resistance :
- 30mOhm
- Fastening Type :
- Friction Lock
- Body Length or Diameter :
- 0.54 inch
- Current Rating (Amps) :
- 3A
- Operating Temperature :
- -25°C~85°C
- Contact Finish - Mating :
- Tin
- Shrouding :
- Shrouded - 4 Wall
- Insulation Color :
- White
- Number of Positions Loaded :
- All
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Factory Lead Time :
- 9 Weeks
- Contact Type :
- Male Pin
- Connector Type :
- Header
- PCB Contact Pattern :
- RECTANGULAR
- Dielectric Withstanding Voltage :
- 500VAC V
- Number Of PCB Rows :
- 1
- Termination :
- Kinked Pin, Solder
- Datasheets
- 25SH-C-08-TR
25SH Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 8-Position Board to Cable/Wire 0.165 4.20mm Height
25SH-C-08-TR Overview
A Header package is included with it.Its mounting type is Through Hole, Right Angle.Packaging is performed using a Bulk case.It is part of the 25SH Series of products.There is no operating temperature for the device.
25SH-C-08-TR Features
25SH series
25SH-C-08-TR Applications
There are a lot of Adam Tech
25SH-C-08-TR Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
