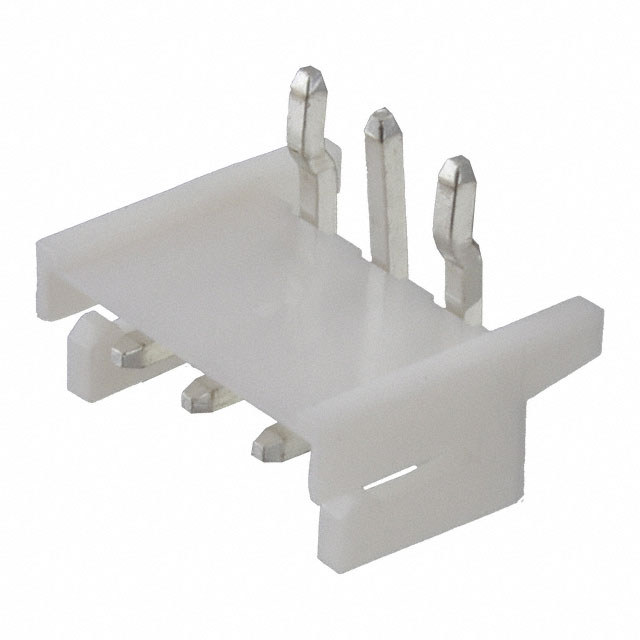

25SH-C-03-TR
Or copy the link below:
- Mfr.Part #
- 25SH-C-03-TR
- Manufacturer
- Adam Tech
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 3POS 2.5MM
- Stock
- 4,219
- In Stock ：
- 4,219
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Adam Tech
- Product Category :
- Headers, Male Pins
- Mating Contact Pitch :
- 0.049 inch
- Insulation Resistance :
- 500000000Ohm
- Number of Conductors :
- ONE
- Shrouding :
- Shrouded - 4 Wall
- Plating Thickness :
- FLASH inch
- Reliability :
- COMMERCIAL
- Polarization Key :
- POLARIZED HOUSING
- Number of Positions :
- 3
- Number of Rows :
- 1
- Contact Finish - Mating :
- Tin
- Contact Length - Post :
- 0.130 3.30mm
- Number of Positions Loaded :
- All
- Series :
- 25SH
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.098 2.50mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Insulation Height :
- 0.165 4.20mm
- Connector Type :
- Header
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Kinked Pin, Solder
- Operating Temperature :
- -25°C~85°C
- Contact Material :
- Brass
- Packaging :
- Bulk
- Contact Shape :
- Square
- Insulation Color :
- White
- Body Depth :
- 0.256 inch
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 9 Weeks
- Dielectric Withstanding Voltage :
- 500VAC V
- Number Of PCB Rows :
- 1
- Reference Standard :
- UL
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Contact Type :
- Male Pin
- Fastening Type :
- Friction Lock
- Mounting Type :
- Through Hole, Right Angle
- Body Length or Diameter :
- 0.295 inch
- Style :
- Board to Cable/Wire
- Current Rating (Amps) :
- 3A
- Mounting Option 1 :
- LOCKING
- Voltage - Rated :
- 250VAC
- Datasheets
- 25SH-C-03-TR
25SH Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.165 4.20mm Height
25SH-C-03-TR Overview
Packaging for this item is Header.There is a mounting type of Through Hole, Right Angle for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 25SH Series.In this case, the device operates at -25°C~85°C Operating Temperature.
25SH-C-03-TR Features
25SH series
25SH-C-03-TR Applications
There are a lot of Adam Tech
25SH-C-03-TR Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
