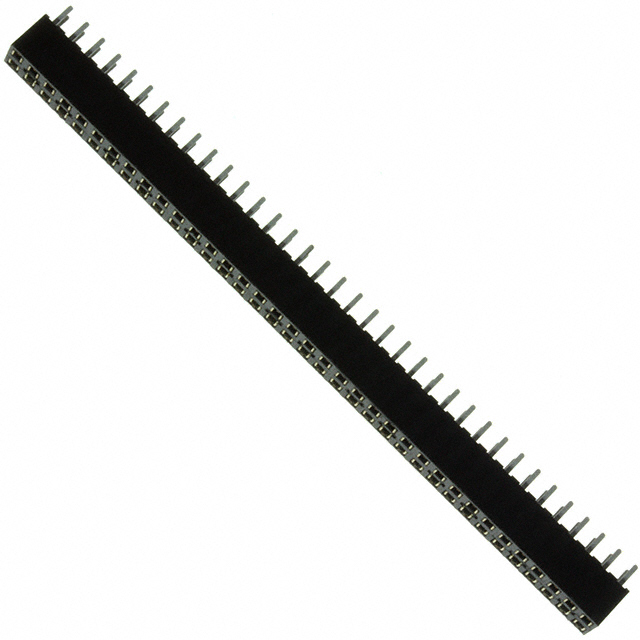

25647201RP2
Or copy the link below:
- Mfr.Part #
- 25647201RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 72POS 0.079 GOLD PCB
- Stock
- 48,635
- In Stock ：
- 48,635
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Receptacles, Female Sockets
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -40°C~105°C
- Series :
- 2564
- Contact Type :
- Female Socket
- Number of Rows :
- 2
- Fastening Type :
- Push-Pull
- Insulation Color :
- Black
- Connector Type :
- Receptacle
- Number of Positions :
- 72
- Contact Finish Thickness - Mating :
- Flash
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 14 Weeks
- Current Rating (Amps) :
- 1A
- Pbfree Code :
- yes
- Packaging :
- Tray
- Contact Finish - Post :
- Tin
- Pitch - Mating :
- 0.079 2.00mm
- Insulation Material :
- Thermoplastic, Glass Filled
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Termination :
- Solder
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Post :
- 0.118 3.00mm
- Contact Finish - Mating :
- Gold
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Insulation Height :
- 0.177 4.50mm
- Contact Shape :
- Square
- Mounting Type :
- Through Hole
- Contact Material :
- Phosphor Bronze
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Published :
- 2007
- Datasheets
- 25647201RP2
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tray Gold Thermoplastic, Glass Filled 72 Positions Female Socket
25647201RP2 Overview
You'll get Receptacle packages.A Through Hole mounting type is specified for the device.A Tray case is used for packaging.The product belongs to the 2564 Series.In this case, the device runs at -40°C~105°C Operating Temperature.
25647201RP2 Features
2564 series
25647201RP2 Applications
There are a lot of NorComp Inc.
25647201RP2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
