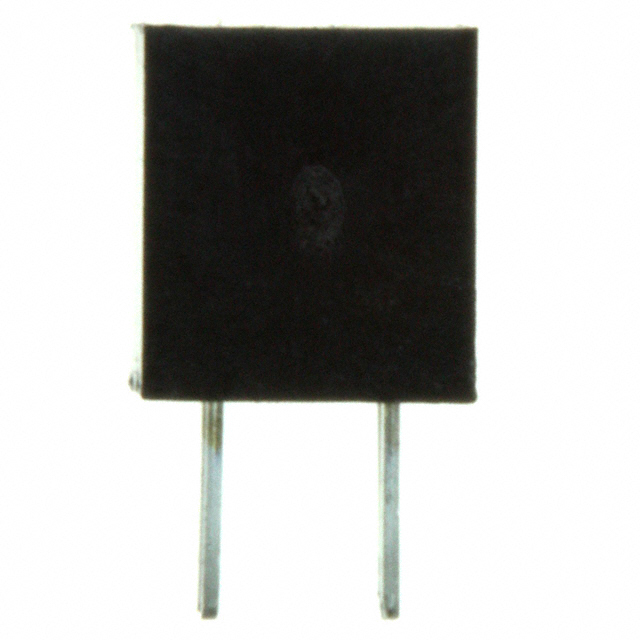

25640401RP2
Or copy the link below:
- Mfr.Part #
- 25640401RP2
- Manufacturer
- NorComp
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 4POS 0.079 GOLD PCB
- Stock
- 16,310
- In Stock ：
- 16,310
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NorComp
- Product Category :
- Headers, Receptacles, Female Sockets
- Series :
- 2564
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Gender :
- FEMALE
- Number of Positions :
- 4
- Operating Temperature :
- -40°C~105°C
- Contact Type :
- Female Socket
- Contact Finish Thickness - Mating :
- Flash
- Pitch - Mating :
- 0.079 2.00mm
- Contact Length - Post :
- 0.118 3.00mm
- Number of Rows :
- 2
- Current Rating (Amps) :
- 1A
- Fastening Type :
- Push-Pull
- Housing Color :
- Black
- Row Spacing - Mating :
- 0.079 (2.00mm)
- Contact Material :
- Phosphor Bronze
- Contact Finish - Mating :
- Gold
- Color :
- Black
- Packaging :
- Tray
- Connector Type :
- Receptacle
- Insulation Height :
- 0.177 4.50mm
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Width :
- 4.01mm
- Insulation Color :
- Black
- Number of Contacts :
- 2
- Mounting Type :
- Through Hole
- Pitch :
- 2.0066mm
- Lead Pitch :
- 2mm
- RoHS Status :
- ROHS3 Compliant
- Mount :
- Through Hole
- Termination :
- Solder
- Factory Lead Time :
- 12 Weeks
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2007
- Contact Plating :
- Gold
- Lead Free :
- Lead Free
- Housing Material :
- Nylon
- Insulation Material :
- Thermoplastic, Glass Filled
- Height :
- 4.5mm
- Contact Finish - Post :
- Tin
- Contact Shape :
- Square
- Length :
- 4.01mm
- Contact Gender :
- FEMALE
- Datasheets
- 25640401RP2
2 Rows Receptacle Solder Phosphor Bronze Through Hole Tray Gold Thermoplastic, Glass Filled 4 Positions Female Socket
25640401RP2 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the 2564 Series.By Through Hole, the part is mounted.Operating temperature is set to -40°C~105°C.
25640401RP2 Features
2564 series
25640401RP2 Applications
There are a lot of NorComp Inc.
25640401RP2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
