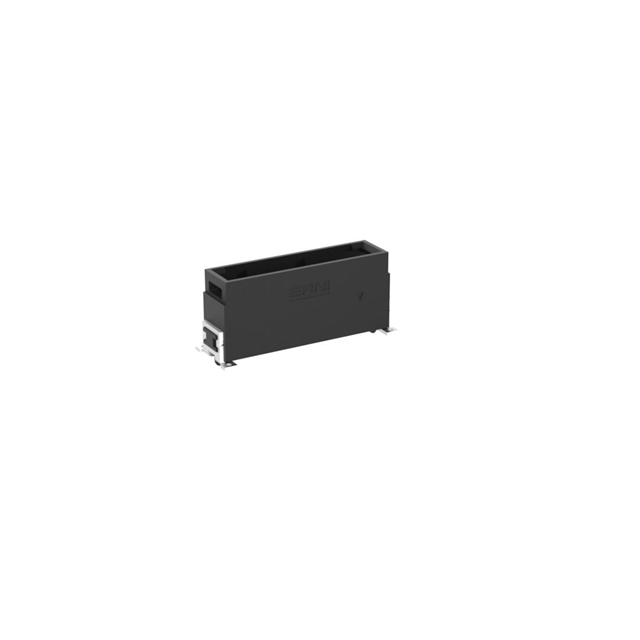

254707
- Mfr.Part #
- 254707
- Manufacturer
- TE Connectivity
- Package / Case
- Datasheet
- Download
- Description
- MAXIBR M 06POS VERT P SMT BK
- Stock
- 2,132
- In Stock :
- 2,132
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity
- Product Category :
- Headers, Male Pins
- Mating Contact Pitch :
- 0.1 inch
- ECCN Code :
- EAR99
- Operating Temp Range :
- -55C to 150C
- Subcategory :
- Headers and Edge Type Connectors
- Reference Standard :
- UL
- Pbfree Code :
- yes
- Mounting Option 1 :
- LOCKING
- Contact Finish Termination :
- Tin (Sn)
- Contact Pattern :
- RECTANGULAR
- Pitch (mm) :
- 2.54(mm)
- Type :
- Shrouded Header
- Board Mounting Option :
- PEG
- Manufacturer :
- ERNI
- Mounting Type :
- BOARD
- HTS Code :
- 8536.69.40.30
- Number of Contacts :
- 6(POS)
- Gender :
- M
- Voltage Rating Max :
- 300V
- Body Orientation :
- Straight
- MIL Conformance :
- No
- Product Depth (mm) :
- 7.2(mm)
- Body Breadth :
- 0.197 inch
- Mixed Contacts :
- No
- Body Depth :
- 0.37 inch
- Mounting Style :
- Surface Mount
- Total Number of Contacts :
- 6
- Connector Type :
- COMBINATION LINE CONNECTOR
- Durability :
- 250 Cycles
- Number of Contact Rows :
- 1
- DIN Conformance :
- No
- Contact Resistance :
- 20 mΩ
- Contact Resistance Max :
- 20(mohm)
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- Housing Color :
- Black
- Option :
- GENERAL PURPOSE
- Product Length (mm) :
- 21.7(mm)
- PCB Contact Pattern :
- RECTANGULAR
- JESD-609 Code :
- e3
- Reach Compliance Code :
- Compliant
- Additional Feature :
- RoHS Compliant
- Product Height (mm) :
- 9.9(mm)
- Termination Method :
- Solder
- Empty Shell :
- No
- IEC Conformance :
- No
- Insulation Resistance :
- 10000000000 Ω
- Contact Gender :
- Male
- Termination Type :
- Surface Mount
- Number Of PCB Rows :
- 1
- Body/Shell Style :
- Receptacle
- Contact Style :
- SQ PIN-SKT
- Packaging :
- Tape and Reel
- Dielectric Withstanding Voltage :
- 1400VAC V
- Contact Material :
- COPPER ALLOY
- Terminal Pitch :
- 2.54 mm
- Contact Plating :
- Gold Over Nickel
- Datasheets
- 254707
