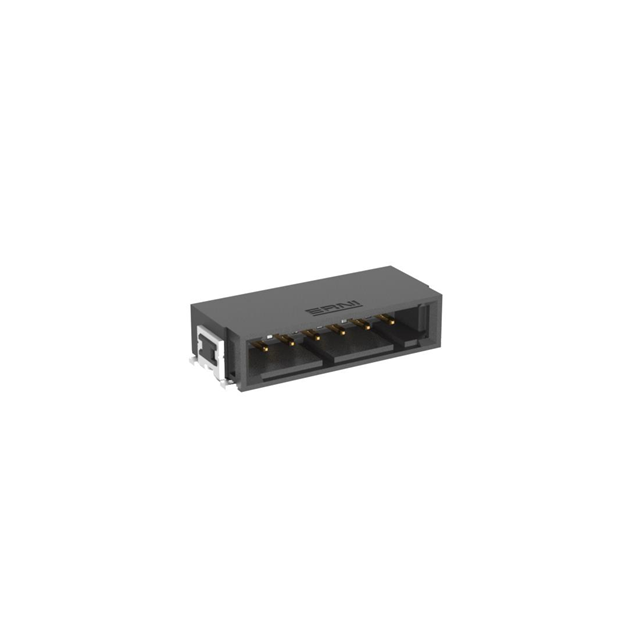

254699

Manufacturer :

TE Connectivity

Product Category :

Headers, Male Pins

Mounting Style :

RIGHT ANGLE

Manufacturer :

ERNI

Contact Resistance :

20 mΩ

Insulation Resistance :

10000000000 Ω

Reach Compliance Code :

Compliant

DIN Conformance :

No

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Empty Shell :

No

Option :

GENERAL PURPOSE

Filter Feature :

No

Connector Type :

COMBINATION LINE CONNECTOR

Number Of PCB Rows :

1

Mounting Option 1 :

LOCKING

Reference Standard :

UL

Body Breadth :

0.199 inch

Body/Shell Style :

Receptacle

Board Mounting Option :

PEG

PCB Contact Pattern :

RECTANGULAR

Mating Contact Pitch :

0.1 inch

MIL Conformance :

No

JESD-609 Code :

e3

Contact Style :

SQ PIN-SKT

Reliability :

COMMERCIAL

Pbfree Code :

yes

Mixed Contacts :

No

Contact Gender :

Male

Additional Feature :

RoHS Compliant

Termination Type :

Surface Mount

Total Number of Contacts :

6

Contact Pattern :

RECTANGULAR

Dielectric Withstanding Voltage :

1400VAC V

Durability :

250 Cycles

Body Depth :

0.35 inch

Contact Finish Termination :

Tin (Sn)

Terminal Pitch :

2.54 mm

Subcategory :

Headers and Edge Type Connectors

Mounting Type :

BOARD
