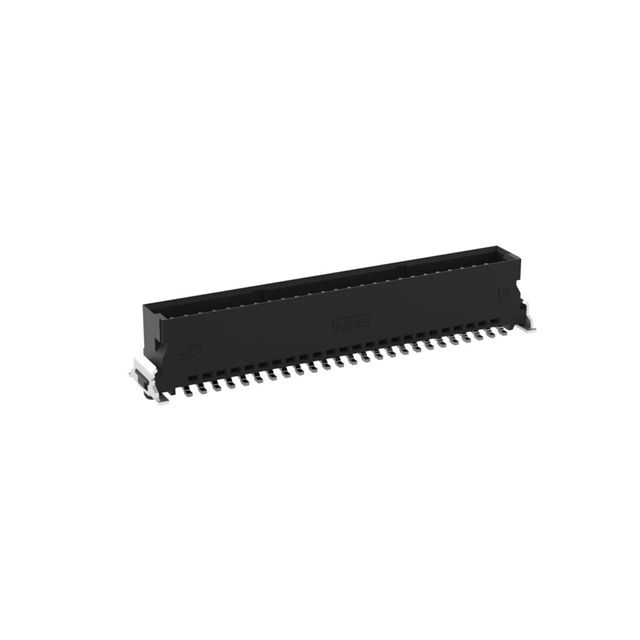

244838

Manufacturer :

TE Connectivity

Product Category :

Headers, Male Pins

IEC Conformance :

No

Type :

Shrouded Header

Current Rating (Max) :

1.7/Contact(A)

Connector Type :

BOARD STACKING CONNECTOR

Termination Method :

Solder

Contact Pattern :

RECTANGULAR

Contact Material :

NOT SPECIFIED

Number of Contacts :

50(POS)

MIL Conformance :

No

Mounting Type :

BOARD

Number Of PCB Rows :

2

Filter Feature :

No

Reach Compliance Code :

Compliant

DIN Conformance :

No

Contact Gender :

Male

Polarization Key :

POLARIZED HOUSING

Body Orientation :

Straight

Pitch (mm) :

1.27(mm)

Total Number of Contacts :

50

Mixed Contacts :

No

Mating Contact Row Spacing :

0.05 inch

Body Depth :

0.266 inch

Additional Feature :

LOW PROFILE

PCB Contact Pattern :

RECTANGULAR

Subcategory :

Headers and Edge Type Connectors

Mounting Style :

Surface Mount

Contact Plating :

Gold

Option :

GENERAL PURPOSE

Terminal Pitch :

1.27 mm

Body Breadth :

0.276 inch

Termination Type :

Surface Mount

Gender :

M

PCB Contact Row Spacing :

5.5118 mm

Packaging :

Tape and Reel

Product Length (mm) :

36.83(mm)

Number of Contact Rows :

2

Rated Current (Signal) :

1.1 A

Product Depth (mm) :

5(mm)

Product Height (mm) :

7.6(mm)

Contact Style :

CENTRONIC

Mating Contact Pitch :

0.05 inch

Manufacturer :

ERNI

Mounting Option 1 :

LOCKING

Reliability :

COMMERCIAL
