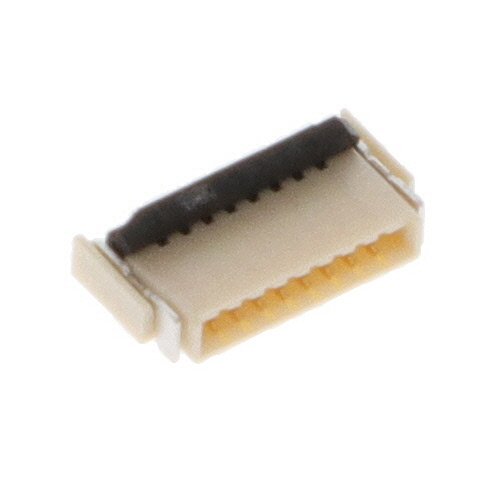

2328702-8
Or copy the link below:
- Mfr.Part #
- 2328702-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- 0.5MM PITCH DUAL CONTACT BACK FL
- Stock
- 7,073
- In Stock ：
- 7,073
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- FFC, FCB Thickness :
- 0.30mm
- Factory Lead Time :
- 12 Weeks
- Flat Flex Type :
- FPC
- Locking Feature :
- Flip Lock, Backlock
- Number of Positions :
- 8
- Contact Finish Thickness :
- 3.00μin 0.076μm
- Material Flammability Rating :
- UL94 V-0
- Termination :
- Solder
- Actuator Color :
- Black
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector/Contact Type :
- Contacts, Top and Bottom
- Housing Color :
- Natural
- Mounting Type :
- Surface Mount, Right Angle
- Current Rating (Amps) :
- 0.5A
- Packaging :
- Tape and Reel (TR)
- Housing Material :
- Thermoplastic
- Height Above Board :
- 0.041 1.05mm
- Voltage - Rated :
- 50V
- Contact Finish :
- Gold
- RoHS Status :
- RoHS Compliant
- Pitch :
- 0.020 0.50mm
- Contact Material :
- COPPER ALLOY
- Cable End Type :
- Tapered
- Operating Temperature :
- -40°C~85°C
- Datasheets
- 2328702-8
FPC Contacts, Top and Bottom Tape & Reel (TR) 0.020 0.50mm Solder 8 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A
2328702-8 Overview
This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.As a result, the device runs at -40°C~85°C Operating Temperature.
2328702-8 Features
2328702-8 Applications
There are a lot of TE Connectivity AMP Connectors
2328702-8 FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
