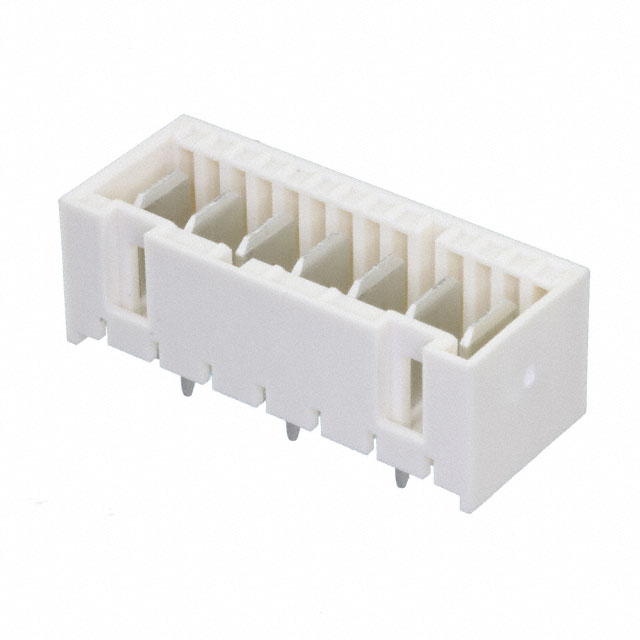

2232043-7
Or copy the link below:
- Mfr.Part #
- 2232043-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 7POS 5MM
- Stock
- 647
- In Stock ：
- 647
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Feature :
- Board Guide, Glow Wire Compliant
- Plating :
- Tin
- Number of Rows :
- 1
- Length :
- 42.3mm
- Row Spacing :
- 5 mm
- Contact Finish Thickness - Mating :
- 1μm
- Pitch - Mating :
- 0.197 5.00mm
- Published :
- 2014
- PCB Mounting Orientation :
- Vertical
- Insulation Height :
- 0.504 12.80mm
- Fastening Type :
- Latch Holder
- Height :
- 12.8mm
- Flammability Rating :
- UL94 V-0
- Circuit Application :
- Signal
- Contact Style :
- Straight
- Preloaded :
- yes
- Applications :
- GENERAL PURPOSE
- Orientation :
- Vertical
- Number of Positions Loaded :
- All
- Mounting Type :
- Through Hole
- Style :
- Board to Cable/Wire
- Current Rating :
- 16A
- PCB Mount Alignment :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Housing Color :
- Natural
- Factory Lead Time :
- 17 Weeks
- Mating Post Length :
- 8.5mm
- Termination :
- Solder
- Material :
- Nylon
- Packaging :
- Bulk
- Housing Material :
- Nylon
- Contact Finish - Post :
- Tin
- Operating Supply Voltage :
- 250V
- Contact Plating :
- Tin, Silver
- Contact Length - Post :
- 0.138 3.50mm
- Contact Finish - Mating :
- Tin
- RoHS Status :
- RoHS Compliant
- Gender :
- Male
- Sealable :
- No
- Shrouding :
- Shrouded - 4 Wall
- Contact Material :
- COPPER ALLOY
- Contact Type :
- Tab
- Mount :
- Through Hole
- Insulation Color :
- Natural
- Connector Type :
- Header
- Contact Shape :
- RECTANGULAR
- Material Flammability Rating :
- UL94 V-0
- Mating Retention :
- With
- Min Operating Temperature :
- -40°C
- Color :
- Natural
- Voltage - Rated :
- 250VAC
- Insulation Material :
- Polyamide (PA), Nylon
- Operating Temperature :
- -40°C~120°C
- Pitch :
- 5mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 3.5mm
- Max Operating Temperature :
- 248°C
- Number of Positions :
- 7
- Number of Contacts :
- 7
- PCB Thickness :
- 1.5mm
- PCB Mount Retention :
- Without
- Datasheets
- 2232043-7
1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA), Nylon 7-Position Board to Cable/Wire 0.504 12.80mm Height
2232043-7 Overview
It comes in Header packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It's best to use it when the temperature is below 248°C.This device must operate at a minimum temperature of -40°C.General Purpose is a possible application for the device.Its Board Guide, Glow Wire Compliant feature renders it more powerful in many ways.The part is mounted by Through Hole.This memory's operating supply voltage is 250V.The device runs in -40°C~120°C Operating Temperature.
2232043-7 Features
2232043-7 Applications
There are a lot of TE Connectivity AMP Connectors
2232043-7 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
