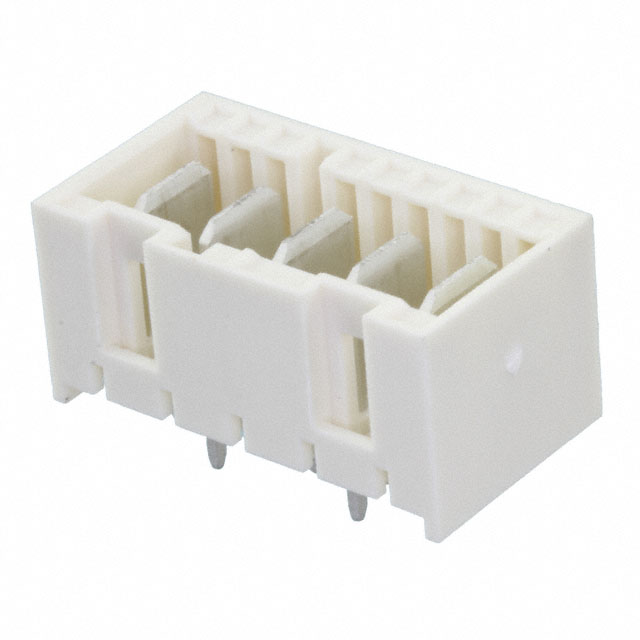

2232043-5
Or copy the link below:
- Mfr.Part #
- 2232043-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 5POS 5MM
- Stock
- 2,400
- In Stock ：
- 2,400
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Length - Tail :
- 3.5mm
- Operating Temperature :
- -40°C~120°C
- Number of Contacts :
- 5
- Number of Positions :
- 5
- Housing Color :
- Natural
- Mating Retention :
- With
- Number of Positions Loaded :
- All
- Min Operating Temperature :
- -40°C
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Material :
- COPPER ALLOY
- PCB Mount Alignment :
- With
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Fastening Type :
- Latch Holder
- Gender :
- Male
- Insulation Height :
- 0.504 12.80mm
- PCB Thickness :
- 1.5mm
- Preloaded :
- yes
- Max Operating Temperature :
- 248°C
- Sealable :
- No
- Mount :
- Through Hole
- Housing Material :
- Nylon
- Plating :
- Tin
- Contact Type :
- Tab
- Circuit Application :
- Signal
- Feature :
- Board Guide, Glow Wire Compliant
- Height :
- 12.8mm
- Contact Finish - Post :
- Tin
- Flammability Rating :
- UL94 V-0
- Number of Rows :
- 1
- Pitch - Mating :
- 0.197 5.00mm
- Contact Finish Thickness - Mating :
- 1μm
- Packaging :
- Bulk
- Contact Style :
- Straight
- Factory Lead Time :
- 17 Weeks
- Mounting Type :
- Through Hole
- Contact Shape :
- RECTANGULAR
- Current Rating :
- 16A
- Material :
- Nylon
- Contact Plating :
- Tin, Silver
- RoHS Status :
- RoHS Compliant
- Row Spacing :
- 5 mm
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2014
- Contact Length - Post :
- 0.138 3.50mm
- Mating Post Length :
- 8.5mm
- PCB Mount Retention :
- Without
- Insulation Color :
- Natural
- Shrouding :
- Shrouded - 4 Wall
- Insulation Material :
- Polyamide (PA), Nylon
- Connector Type :
- Header
- Pitch :
- 5mm
- Termination :
- Solder
- Style :
- Board to Cable/Wire
- Orientation :
- Vertical
- Voltage - Rated :
- 250VAC
- Applications :
- GENERAL PURPOSE
- Operating Supply Voltage :
- 250V
- Contact Finish - Mating :
- Tin
- Length :
- 32.258mm
- Color :
- Natural
- PCB Mounting Orientation :
- Vertical
- Datasheets
- 2232043-5
1-Row Header Solder Copper Alloy Bulk Through Hole Tin Polyamide (PA), Nylon 5-Position Board to Cable/Wire 0.504 12.80mm Height
2232043-5 Overview
Packaging is in the form of Header.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.If the temperature is below 248°C, it's best to use it.-40°C is the minimum temperature for this device.There are a variety of possible applications for this device, including General Purpose.Several benefits come from the Board Guide, Glow Wire Compliant feature.There is a mounting hole at Through Hole.It runs on 250V voltage.Devices operate at -40°C~120°C operating temperatures.
2232043-5 Features
2232043-5 Applications
There are a lot of TE Connectivity AMP Connectors
2232043-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
