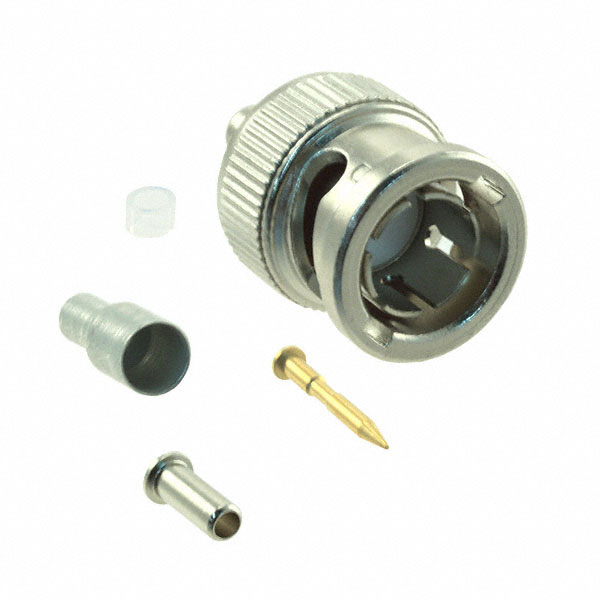

221185-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Coaxial Connector (RF) Assemblies

Number of Ports :

1

Sealable :

No

Impedance :

75Ohm

Insertion Loss :

0.15dB

Pbfree Code :

No

Orientation :

Straight

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Dielectric Material :

Polyethylene (PE)

Body Material :

Zinc

Connector Type :

Plug, Male Pin

Housing Color :

Silver

Cable Group :

RG-179, 179A, 179B, 187, 187A

Option :

GENERAL PURPOSE

JESD-609 Code :

e4

Insulation Resistance :

5GOhm

Insulation Material :

POLYETHYLENE

Gender :

Male

Polarity :

Normal, Standard

Factory Lead Time :

15 Weeks

ELV :

Non-Compliant

Total Number of Contacts :

1

Body Finish :

Nickel

Frequency (Max) :

2GHz

Lead Free :

Not Applicable

Mount :

Cable, Free Hanging

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Filter Feature :

No

Packaging :

Bulk

Reliability :

COMMERCIAL

Voltage - Rated :

500V

Frequency :

2Hz

Connector Style :

BNC

Fastening Type :

Bayonet Lock

MIL Conformance :

No

VSWR :

1.3

Mating Cycles :

500

IEC Conformance :

No

Contact Style :

COAX

RoHS Status :

Non-RoHS Compliant

Mounting Type :

Free Hanging (In-Line)

Center Contact Plating :

Gold

ECCN Code :

EAR99

Number of Positions :

1

Length :

28.96mm

Contact Termination :

Crimp

Published :

2005

Contact Resistance :

3mOhm

Center Contact Material :

Brass

DIN Conformance :

No

Operating Temperature :

-55°C~85°C

REACH SVHC :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
