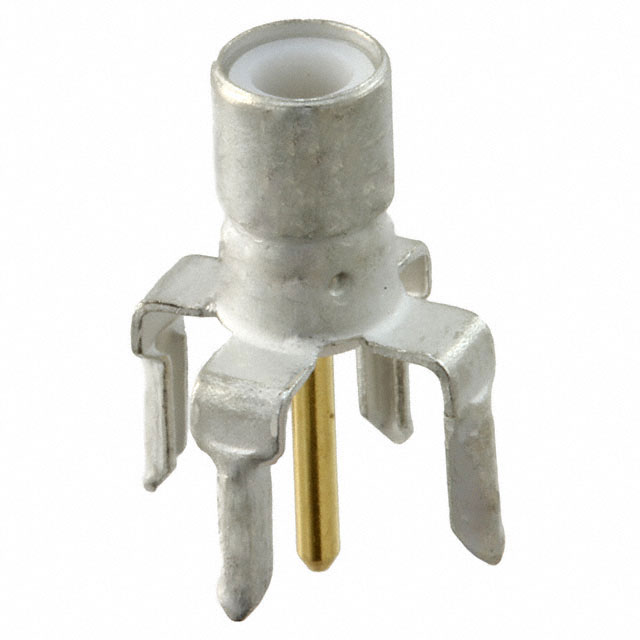

221111-1
Or copy the link below:
- Mfr.Part #
- 221111-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN SMB JACK STR 50 OHM PCB
- Stock
- 21,840
- In Stock ：
- 21,840
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Coaxial Connector (RF) Assemblies
- Total Number of Contacts :
- 1
- Lead Free :
- Contains Lead
- Polarity :
- Standard
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Operating Temperature :
- -65°C~165°C
- Voltage - Rated :
- 335V
- Impedance :
- 50Ohm
- Body Material :
- Brass
- RoHS Status :
- Non-RoHS Compliant
- Termination :
- Solder, Through Hole
- Factory Lead Time :
- 15 Weeks
- MIL Conformance :
- No
- Additional Feature :
- AMP
- Packaging :
- Bulk
- DIN Conformance :
- No
- Body Depth :
- 0.325 inch
- Pbfree Code :
- No
- Housing Color :
- Silver
- Option :
- GENERAL PURPOSE
- Contact Style :
- COAX
- Connector Style :
- SMB
- Number of Ports :
- 1
- ECCN Code :
- EAR99
- Mating Cycles :
- 500
- Connector Type :
- Jack, Male Pin
- Frequency :
- 4GHz
- Mount :
- Through Hole
- Length - Tail :
- 4.44mm
- Contact Termination :
- Solder
- Body Plating :
- Nickel
- Body Finish :
- Tin
- Withdrawl Force-Min :
- 8.896 N
- Contact Resistance :
- 8mOhm
- IEC Conformance :
- No
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Insulation Material :
- Polytetrafluoroethylene
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Center Contact Plating :
- Gold
- Fastening Type :
- Snap-On
- Filter Feature :
- No
- Number of Positions :
- 1
- Reliability :
- COMMERCIAL
- Insulation Resistance :
- 1GOhm
- Published :
- 1997
- Insertion Loss :
- 0.3dB
- Mounting Type :
- Through Hole
- Sealable :
- No
- Insertion Force-Max :
- 35.584 N
- PCB Mounting Orientation :
- Vertical
- Datasheets
- 221111-1
Jack, Male Pin Snap-On 50Ohm Bulk SMB Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
221111-1 Overview
This product is packaged in a Jack, Male Pin box.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Further, there are features such as AMP, to name only a few.There are 1 ports available for managing a variety of tasks on this device.There is a Through Hole mount on the part.This device operates at a temperature of -65°C~165°C.At a frequency of 4GHz, it can operate efficiently.
221111-1 Features
221111-1 Applications
There are a lot of TE Connectivity AMP Connectors
221111-1 Coaxial Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
