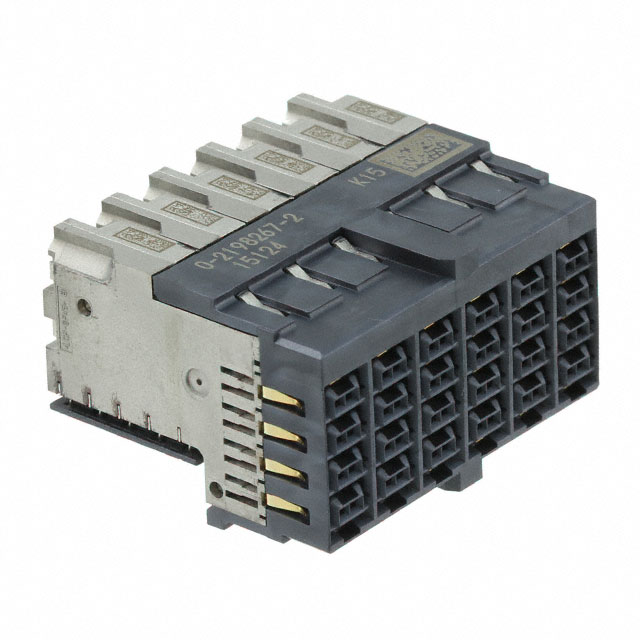

2198267-2
Or copy the link below:
- Mfr.Part #
- 2198267-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HDR DUAL BEAM 48POS EDGE MT
- Stock
- 18,747
- In Stock ：
- 18,747
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Shrouding :
- Unshrouded
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~85°C
- Number of Pairs :
- 24
- Differential Signaling :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Number of Rows :
- 4
- Pitch :
- 0.177 4.50mm
- Length :
- 26.9mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Columns :
- 6
- Contact Current Rating :
- 500mA
- Circuit Application :
- Signal
- Max Operating Temperature :
- 185°C
- Contact Plating :
- Tin
- Voltage - Rated :
- 250V
- Gender :
- Receptacle
- Number of Contacts :
- 72
- Housing Material :
- Thermoplastic
- Factory Lead Time :
- 17 Weeks
- Number of Pins :
- 72
- Number of Ground Positions :
- 30
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Current Rating :
- 500mA
- Mating Alignment :
- With
- Stack Height :
- 1.4986mm
- Contact Style :
- Press-Fit
- Operating Supply Voltage :
- 80V
- PCB Thickness :
- 1mm
- Preloaded :
- No
- Impedance :
- 100Ohm
- Orientation :
- RIGHT ANGLE
- Flammability Rating :
- UL94 V-0
- Number of Positions :
- 48
- Contact Layout, Typical :
- 24 Differential Pairs
- REACH SVHC :
- Unknown
- Termination :
- Press-Fit
- Published :
- 2012
- Number of Signal Positions :
- 48
- Current Rating (Amps) :
- 0.5A
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Height :
- 26.67mm
- Approval Agency :
- UL
- Row Spacing :
- 2.4892 mm
- Data Rate :
- 56 Gbps
- Number of Power Positions :
- 48
- Length - Tail :
- 1.4986mm
- Stackable :
- No
- Connector Type :
- Header, Male Pins and Blades
- RoHS Status :
- RoHS Compliant
- Housing Color :
- Black
- Connector Usage :
- Backplane
- Durability Rating :
- 200 Cycles
- Width :
- 23mm
- Connector Style :
- Dual Beam, Center
- Max Current Rating :
- 500mA
- Sealable :
- No
- Packaging :
- Tube
- ELV :
- Compliant
- Differential Pairs per Column :
- 6
- Series :
- Strada Whisper
- Min Operating Temperature :
- -67°C
- Hole Diameter :
- 344 μm
- Make First / Break Last :
- No
- Number of Positions Loaded :
- All
- Datasheets
- 2198267-2
