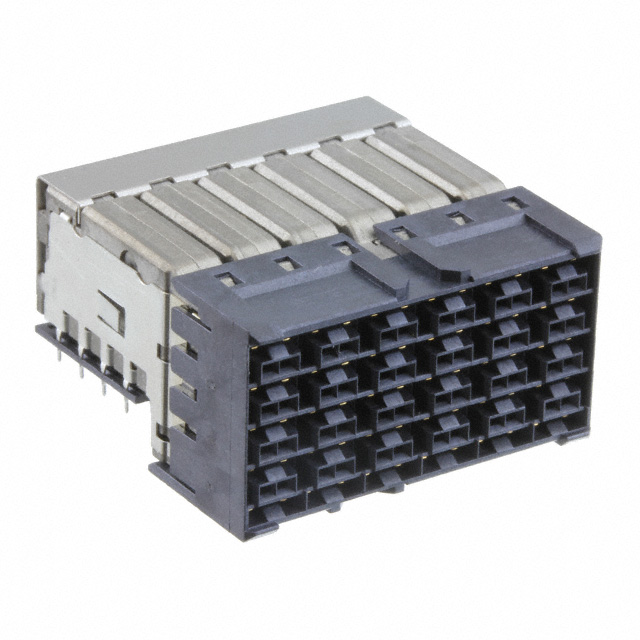

2187658-1
Or copy the link below:
- Mfr.Part #
- 2187658-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- SW PIR RECT, 100OHM, 4X6
- Stock
- 163
- In Stock ：
- 163
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Operating Supply Voltage :
- 80V
- Color :
- Black
- Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Number of Signal Positions :
- 48
- Sealable :
- No
- Termination :
- Press-Fit
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Data Rate :
- 56 Gbps
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Polymer
- Impedance :
- 100Ohm
- Pitch :
- 0.154 3.90mm
- Contact Plating :
- Tin
- Published :
- 2016
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- Orientation :
- RIGHT ANGLE
- Differential Pairs per Column :
- 8
- Factory Lead Time :
- 17 Weeks
- Number of Ground Positions :
- 30
- Max Current Rating :
- 400mA
- Mating Alignment :
- With
- Differential Signaling :
- yes
- Row Spacing :
- 2.4892 mm
- Number of Positions Loaded :
- All
- Number of Columns :
- 6
- Number of Pairs :
- 24
- Mounting Type :
- Through Hole, Right Angle
- Connector Style :
- Dual Beam, Center
- Voltage - Rated :
- 80V
- Series :
- Strada Whisper
- Durability Rating :
- 200 Cycles
- Contact Current Rating :
- 400mA
- Shrouding :
- Unshrouded
- Packaging :
- Bulk
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~105°C
- Current Rating :
- 400mA
- Connector Usage :
- Daughtercard
- Number of Rows :
- 4
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Approval Agency :
- UL
- Circuit Application :
- Signal
- Contact Layout, Typical :
- 24 Differential Pairs
- Datasheets
- 2187658-1
STRADA Whisper Series Receptacle, Female Sockets and Blade Sockets Press-Fit Black Pitch: 0.154 3.90mm -55°C~105°C Bulk Through Hole, Right Angle
2187658-1 Overview
This product is packaged in a Receptacle, Female Sockets and Blade Sockets box.Through Hole, Right Angle indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the STRADA Whisper Series.Operating temperature is set to -55°C~105°C.The Backplane Connector is capable of working with a supply voltage of 80V.
2187658-1 Features
STRADA Whisper series
2187658-1 Applications
There are a lot of TE Connectivity AMP Connectors
2187658-1 Backplane Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
