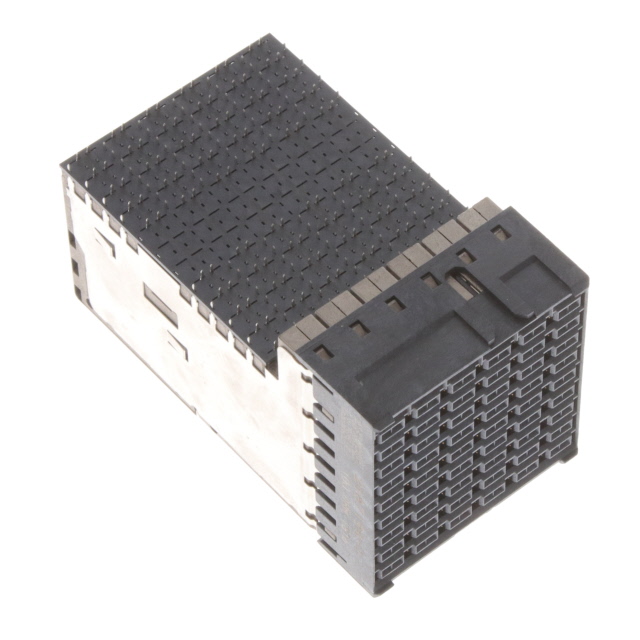

2187194-1
Or copy the link below:
- Mfr.Part #
- 2187194-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT DUAL BEAM 108P EDGE MT
- Stock
- 135
- In Stock ：
- 135
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Published :
- 2014
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- RoHS Status :
- RoHS Compliant
- Connector Style :
- Dual Beam, Center
- Shrouding :
- Unshrouded
- Color :
- Black
- Mount :
- Through Hole
- Number of Positions :
- 108
- Data Rate :
- 56 Gbps
- Sealable :
- No
- Number of Columns :
- 6
- Orientation :
- RIGHT ANGLE
- Operating Temperature :
- -55°C~85°C
- Voltage - Rated :
- 250V
- Approval Agency :
- UL
- Current Rating :
- 400mA
- Contact Layout, Typical :
- 54 Differential Pairs
- Series :
- Strada Whisper
- Flammability Rating :
- UL94 V-0
- Number of Contacts :
- 144
- Contact Current Rating :
- 400mA
- Housing Material :
- Polymer
- Circuit Application :
- Signal
- Durability Rating :
- 200 Cycles
- Impedance :
- 100Ohm
- Contact Plating :
- Tin
- Differential Pairs per Column :
- 12
- Number of Power Positions :
- 96
- REACH SVHC :
- Unknown
- Material Flammability Rating :
- UL94 V-0
- Operating Supply Voltage :
- 80V
- Number of Ground Positions :
- 54
- Connector Usage :
- Backplane
- Max Current Rating :
- 400mA
- Number of Positions Loaded :
- All
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 23.9mm
- Gender :
- Receptacle
- PCB Mounting Orientation :
- RIGHT ANGLE
- Current Rating (Amps) :
- 0.5A
- Row Spacing :
- 2.4892 mm
- Termination :
- Press-Fit
- Mating Alignment :
- With
- Pitch :
- 0.177 4.50mm
- Connector Type :
- Receptacle, Female Sockets
- Differential Signaling :
- yes
- Number of Rows :
- 9
- Factory Lead Time :
- 17 Weeks
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Datasheets
- 2187194-1
STRADA Whisper Series Receptacle, Female Sockets Press-Fit Black 108 Positions Pitch: 0.177 4.50mm -55°C~85°C Board Edge, Through Hole, Right Angle
2187194-1 Overview
Packaging is in the form of Receptacle, Female Sockets.This device has a Board Edge, Through Hole, Right Angle mounting type.Specifically, it is one of the products in the STRADA Whisper Series.There is a mounting hole at Through Hole.Devices operate at -55°C~85°C operating temperatures.A supply voltage of 80V is necessary for this Backplane Connector to work.
2187194-1 Features
STRADA Whisper series
2187194-1 Applications
There are a lot of TE Connectivity AMP Connectors
2187194-1 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
