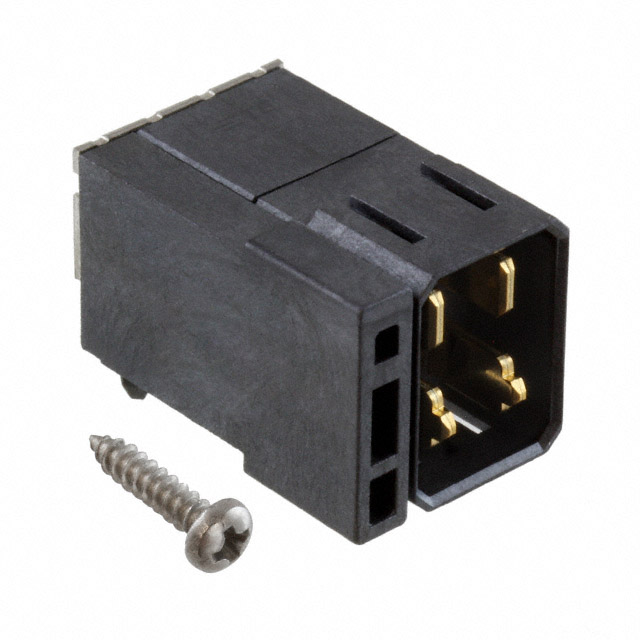

2180850-4
Or copy the link below:
- Mfr.Part #
- 2180850-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER BLADE PWR EDGE MNT
- Stock
- 212
- In Stock ：
- 212
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Color :
- Black
- Data Rate :
- 25 Gbps
- Operating Temperature :
- -55°C~ 85°C
- Number of Pairs :
- 4
- Stack Height :
- 14.88mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Number of Positions :
- 8
- Contact Plating :
- Gold, Tin
- ELV :
- Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Feature :
- Board Guide
- PCB Thickness :
- 3.9878mm
- Termination :
- Press-Fit
- Number of Rows :
- 2
- Plating Thickness :
- 760 nm
- Connector Type :
- Header, Male Blades
- Flammability Rating :
- UL94 V-0
- Pitch :
- 5.2mm
- Number of Positions Loaded :
- All
- Width :
- 14.9987mm
- Series :
- Impact
- RoHS Status :
- RoHS Compliant
- Factory Lead Time :
- 11 Weeks
- Connector Style :
- Blade Power
- Length - Tail :
- 2.5mm
- Contact Finish :
- Gold
- Housing Material :
- Glass
- Row Spacing :
- 6.6 mm
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Hole Diameter :
- 723.9 µm
- Contact Current Rating :
- 15A
- Height :
- 14.87932mm
- Differential Signaling :
- No
- Packaging :
- Tray
- Length :
- 23.97mm
- Orientation :
- Vertical
- Material Flammability Rating :
- UL94 V-0
- Published :
- 2012
- Underplate Material :
- Nickel
- Differential Pairs per Column :
- 3
- Datasheets
- 2180850-4
Impact Series Header, Male Blades Press-Fit Gold Black 30.0μin 0.76μm 8 Positions Pitch: 5.2mm -55°C~ 85°C Tray Board Edge, Through Hole, Right Angle
2180850-4 Overview
Packaging is Header, Male Blades.Board Edge, Through Hole, Right Angle is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Impact Series, it can be found in this category.With its Board Guide feature, it is more powerful in many ways.The device is operating at -55°C~ 85°C Operating Temperature.
2180850-4 Features
Impact series
2180850-4 Applications
There are a lot of TE Connectivity AMP Connectors
2180850-4 Backplane Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
