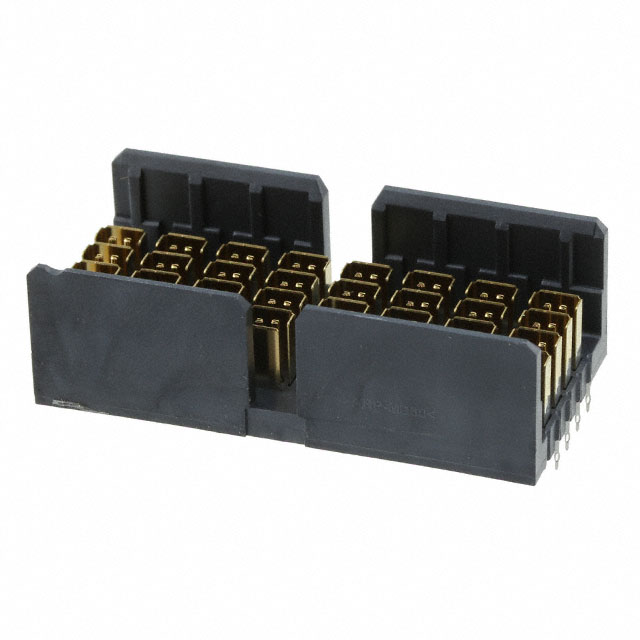

2180832-2
Or copy the link below:
- Mfr.Part #
- 2180832-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER DUAL BEAM 64POS PCB
- Stock
- 311
- In Stock ：
- 311
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Hole Diameter :
- 344 μm
- Max Current Rating :
- 500mA
- Color :
- Black
- Operating Temperature :
- -55°C~85°C
- ELV :
- Compliant
- Sealable :
- No
- Number of Pairs :
- 32
- Series :
- Strada Whisper
- Termination :
- Press-Fit
- Packaging :
- Tube
- Min Operating Temperature :
- -67°C
- Factory Lead Time :
- 13 Weeks
- Impedance :
- 100Ohm
- Number of Ground Positions :
- 40
- Height :
- 17.399mm
- Length - Tail :
- 1.65mm
- Mount :
- Through Hole
- Length :
- 17.4mm
- Housing Material :
- Thermoplastic
- Current Rating :
- 500mA
- Stack Height :
- 1.651mm
- Contact Layout, Typical :
- 32 Differential Pairs
- RoHS Status :
- RoHS Compliant
- Row Spacing :
- 2.4892 mm
- Pitch :
- 0.177 4.50mm
- Voltage - Rated :
- 250V
- Make First / Break Last :
- No
- Width :
- 18.3896mm
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Contact Style :
- Press-Fit
- Material Flammability Rating :
- UL94 V-0
- Shrouding :
- Partially Shrouded
- Plating Thickness :
- 760 nm
- Mounting Type :
- Through Hole
- Housing Color :
- Black
- PCB Thickness :
- 1mm
- Orientation :
- Vertical
- Contact Plating :
- Tin, Gold
- Current Rating (Amps) :
- 0.5A
- Number of Rows :
- 4
- Connector Type :
- Header, Male Pins and Blades
- Number of Positions :
- 64
- Preloaded :
- yes
- Data Rate :
- 56 Gbps
- Durability Rating :
- 200 Cycles
- Connector Style :
- Dual Beam, Center
- Approval Agency :
- UL
- Operating Supply Voltage :
- 80V
- Stackable :
- yes
- REACH SVHC :
- Unknown
- Differential Signaling :
- yes
- Connector Usage :
- Backplane
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Columns :
- 8
- Differential Pairs per Column :
- 4
- Contact Current Rating :
- 500mA
- Mating Alignment :
- With
- Number of Contacts :
- 96
- Number of Power Positions :
- 64
- Number of Signal Positions :
- 64
- Published :
- 2012
- Max Operating Temperature :
- 185°C
- PCB Mounting Orientation :
- Vertical
- Circuit Application :
- Signal
- Gender :
- Male
- Lifecycle Status :
- ACTIVE (Last Updated: 4 months ago)
- Datasheets
- 2180832-2
STRADA Whisper Series Header, Male Pins and Blades Press-Fit Black 64 Positions Pitch: 0.177 4.50mm -55°C~85°C Tube Through Hole
2180832-2 Overview
The product is packaged in Header, Male Pins and Blades.This device is mounted in the Through Hole position.It has been determined that a Tube case is necessary to package the product.There is a product in the STRADA Whisper Series.When the temperature is below 185°C, it is best to use it.A minimum operating temperature of -67°C is required for this device.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~85°C Operating Temperature.A supply voltage of 80V is required to operate this Backplane Connector.
2180832-2 Features
STRADA Whisper series
2180832-2 Applications
There are a lot of TE Connectivity AMP Connectors
2180832-2 Backplane Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
