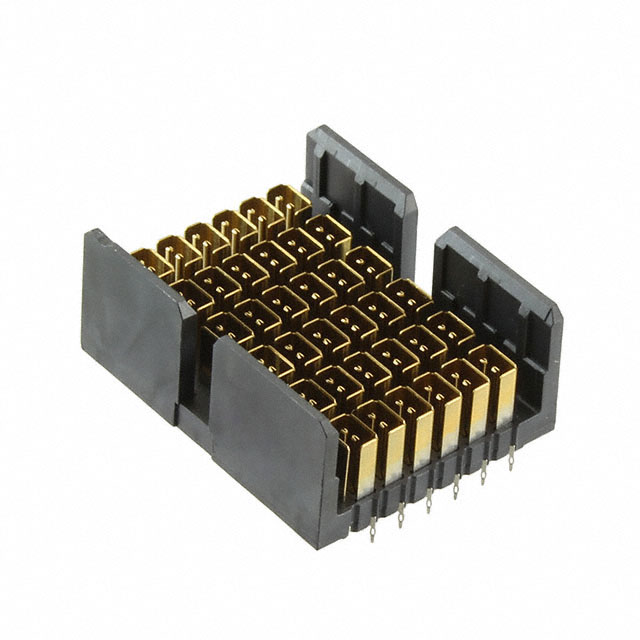

2180826-2
Or copy the link below:
- Mfr.Part #
- 2180826-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER DUAL BEAM 72POS PCB
- Stock
- 88
- In Stock ：
- 88
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number of Signal Positions :
- 72
- Durability Rating :
- 200 Cycles
- Length :
- 27.4mm
- Make First / Break Last :
- No
- Plating Thickness :
- 760 nm
- REACH SVHC :
- Unknown
- Housing Material :
- Thermoplastic
- Number of Positions Loaded :
- All
- Length - Tail :
- 1.65mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Press-Fit
- Current Rating :
- 500mA
- Factory Lead Time :
- 15 Weeks
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 6
- ELV :
- Compliant
- Height :
- 27.178mm
- Differential Signaling :
- yes
- Voltage - Rated :
- 250V
- Packaging :
- Tube
- Mounting Type :
- Through Hole
- Connector Usage :
- Backplane
- RoHS Status :
- RoHS Compliant
- Number of Ground Positions :
- 42
- Shrouding :
- Partially Shrouded
- Impedance :
- 100Ohm
- Connector Style :
- Dual Beam, Center
- Operating Temperature :
- -55°C~85°C
- Current Rating (Amps) :
- 0.5A
- Hole Diameter :
- 344 μm
- Differential Pairs per Column :
- 8
- Series :
- Strada Whisper
- Approval Agency :
- UL
- Mating Alignment :
- With
- Circuit Application :
- Signal
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Gender :
- Male
- PCB Thickness :
- 1mm
- Width :
- 21.4mm
- Contact Current Rating :
- 500mA
- Published :
- 2012
- Contact Plating :
- Tin, Gold
- Operating Supply Voltage :
- 80V
- Max Current Rating :
- 500mA
- Pitch :
- 0.177 4.50mm
- Contact Layout, Typical :
- 36 Differential Pairs
- Stack Height :
- 1.651mm
- Connector Type :
- Header, Male Pins and Blades
- Number of Pairs :
- 36
- Number of Pins :
- 108
- Data Rate :
- 56 Gbps
- Color :
- Black
- Orientation :
- Vertical
- Flammability Rating :
- UL94 V-0
- Row Spacing :
- 2.4892 mm
- Datasheets
- 2180826-2
STRADA Whisper Series Header, Male Pins and Blades Press-Fit Black Pitch: 0.177 4.50mm -55°C~85°C Tube Through Hole
2180826-2 Overview
You'll get Header, Male Pins and Blades packages.A Through Hole mounting type is specified for the device.A Tube case is used for packaging.The product belongs to the STRADA Whisper Series.It has 108 pins on the back of the device.In this case, the device runs at -55°C~85°C Operating Temperature.Backplane Connectors work with a supply voltage of 80V.
2180826-2 Features
STRADA Whisper series
2180826-2 Applications
There are a lot of TE Connectivity AMP Connectors
2180826-2 Backplane Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
