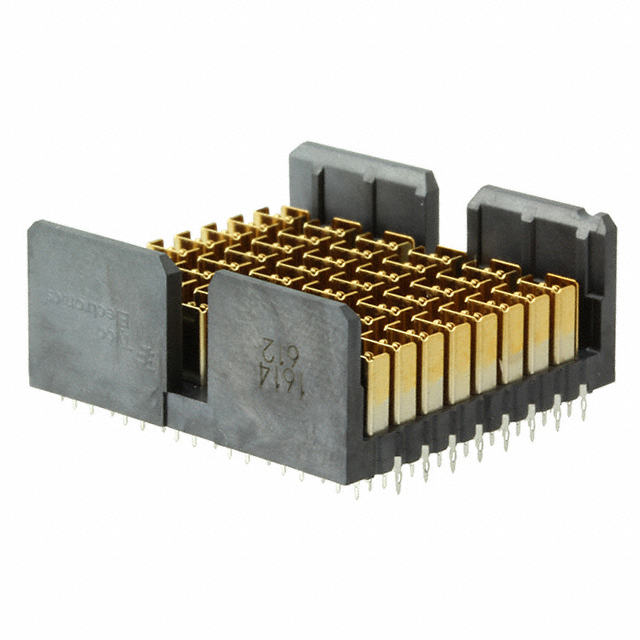

2180822-5
Or copy the link below:
- Mfr.Part #
- 2180822-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT DUAL BEAM 96POS PCB
- Stock
- 86
- In Stock ：
- 86
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Housing Material :
- Polymer
- Data Rate :
- 56 Gbps
- Orientation :
- Vertical
- Row Spacing :
- 2.4892 mm
- Differential Signaling :
- yes
- Contact Style :
- Press-Fit
- Current Rating :
- 500mA
- Pitch :
- 4.4958mm
- Number of Positions Loaded :
- All
- Published :
- 2014
- Number of Signal Positions :
- 96
- Mounting Type :
- Through Hole
- Connector Style :
- Dual Beam, Center
- Number of Contacts :
- 96
- Connector Type :
- Receptacle, Female Sockets
- Number of Ground Positions :
- 54
- Max Current Rating :
- 500mA
- Housing Color :
- Black
- Number of Positions :
- 96
- Factory Lead Time :
- 14 Weeks
- PCB Mounting Orientation :
- Vertical
- Max Operating Temperature :
- 185°C
- Make First / Break Last :
- No
- Shrouding :
- Partially Shrouded
- Mating Alignment :
- With
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Approval Agency :
- UL
- Packaging :
- Tube
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Durability Rating :
- 200 Cycles
- Termination :
- Press-Fit
- Series :
- Strada Whisper
- Operating Supply Voltage :
- 80V
- Sealable :
- No
- Contact Current Rating :
- 500mA
- Number of Power Positions :
- 96
- Number of Rows :
- 8
- Color :
- Black
- Connector Usage :
- Backplane
- Impedance :
- 100Ohm
- Material Flammability Rating :
- UL94 V-0
- Differential Pairs per Column :
- 6
- Contact Plating :
- Tin
- Min Operating Temperature :
- -67°C
- Hole Diameter :
- 344 μm
- Flammability Rating :
- UL94 V-0
- Number of Columns :
- 6
- Circuit Application :
- Signal
- Datasheets
- 2180822-5
STRADA Whisper Series Receptacle, Female Sockets Press-Fit Black 96 Positions Pitch: 4.4958mm Tube Through Hole
2180822-5 Overview
Currently, it is packaged in Receptacle, Female Sockets.The mounting type of the device is Through Hole.A Tube case is used to package the product.A product of the STRADA Whisper Series, it belongs to the range of products of that series.A temperature below 185°C is best for using it.The device must run at -67°C degrees.If you supply the connector with a voltage of 80V, it will work.
2180822-5 Features
STRADA Whisper series
2180822-5 Applications
There are a lot of TE Connectivity AMP Connectors
2180822-5 Backplane Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
