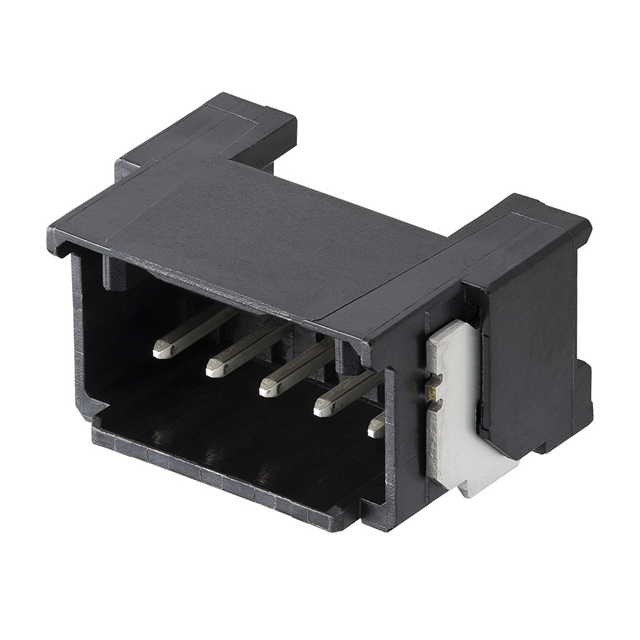

2170640071

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mounting Angle :

RIGHT ANGLE

Pitch :

2 mm

Current Rating (Amps) :

Varies by Wire Gauge

Termination :

Solder

Row Spacing - Mating :

-

Fastening Type :

Latch Lock

Packaging :

Cut Tape

Contact Shape :

Square

Pitch - Mating :

0.079 (2.00mm)

Contact Length - Post :

-

Tradename :

Micro-One

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Minimum Operating Temperature :

- 40 C

Number of Contacts :

7

Contact Length - Mating :

-

Body Orientation :

RIGHT ANGLE

Contact Finish - Mating :

Tin-Bismuth

Ingress Protection :

-

Housing Material :

Polyamide (PA)

Insulation Height :

0.283 (7.19mm)

Operating Temperature :

-40 to 105 °C

Gender :

Header

Mated Stacking Heights :

-

Maximum Operating Temperature :

+ 105 C

Mounting Type :

Surface Mount, Right Angle

Insulation Color :

Black

Voltage Rating :

250 VAC, 250 VDC

Overall Contact Length :

-

Base Product Number :

217064

Series :

217064

Product Status :

Active

Number of Rows :

1 Row

Number of Positions :

7 Position

Product :

Headers

Contact Finish - Post :

Tin-Bismuth

Material Flammability Rating :

UL94 V-0

Package :

Tape and Reel (TR);Cut Tape (CT);

Contact Material :

Brass

Contact Gender :

Pin (Male)

Features :

Solder Retention

Connector Type :

Header

RoHS :

Details

Application :

Wire-to-Board

Flammability Rating :

UL 94 V-0

Type :

Micro-One Wire-to-Board Header

Current Rating :

4 A

Product Length :

18 mm

Insulation Material :

Polyamide (PA), Nylon

Housing Color :

Black

Contact Plating :

Tin

Termination Method :

Solder

Style :

Board to Cable/Wire

Number of Positions Loaded :

All

Termination Style :

-

Mounting Style :

SMD/SMT

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Shrouding :

Shrouded - 4 Wall

Applications :

-

Contact Type :

Male Pin
