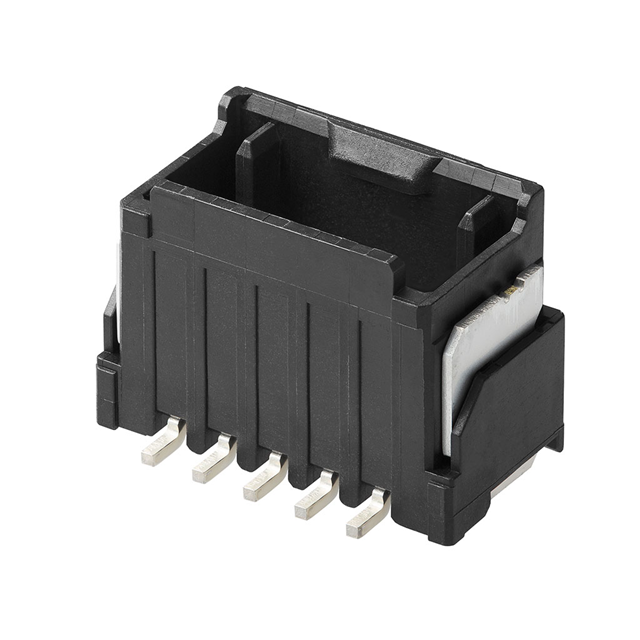

2170630075

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Shape :

Square

Product Status :

Active

Base Product Number :

217063

Features :

Solder Retention

Number of Positions :

7 Position

Insulation Height :

0.390 (9.91mm)

Style :

Board to Cable/Wire

Mounting Type :

Surface Mount

Connector Type :

Header

Number of Positions Loaded :

All

Package :

Tape and Reel (TR);Cut Tape (CT);

Minimum Operating Temperature :

- 40 C

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

-

Housing Material :

Polyamide (PA)

Contact Gender :

Pin (Male)

Tradename :

Micro-One

Operating Temperature :

-40°C ~ 105°C

Contact Type :

Male Pin

Insulation Material :

Polyamide (PA), Nylon

Fastening Type :

Latch Lock

Contact Length - Mating :

-

Product :

Headers

Current Rating (Amps) :

Varies by Wire Gauge

Number of Rows :

1 Row

Maximum Operating Temperature :

+ 105 C

Contact Finish - Mating :

Tin-Bismuth

Mounting Style :

SMD/SMT

Contact Material :

Brass

Mated Stacking Heights :

-

Series :

217063

Housing Color :

Black

Packaging :

Cut Tape

Pitch :

2 mm

Voltage Rating :

250 VAC, 250 VDC

Ingress Protection :

-

Type :

Micro-One Wire-to-Board Header

Contact Plating :

Tin

RoHS :

Details

Termination Style :

-

Flammability Rating :

UL 94 V-0

Application :

Wire-to-Board

Row Spacing - Mating :

-

Insulation Color :

Black

Termination :

Solder

Mounting Angle :

Straight

Overall Contact Length :

-

Pitch - Mating :

0.079 (2.00mm)

Contact Finish Thickness - Mating :

39.4µin (1.00µm)

Current Rating :

4 A

Applications :

-

Contact Finish Thickness - Post :

39.4µin (1.00µm)

Material Flammability Rating :

UL94 V-0

Contact Finish - Post :

Tin-Bismuth
