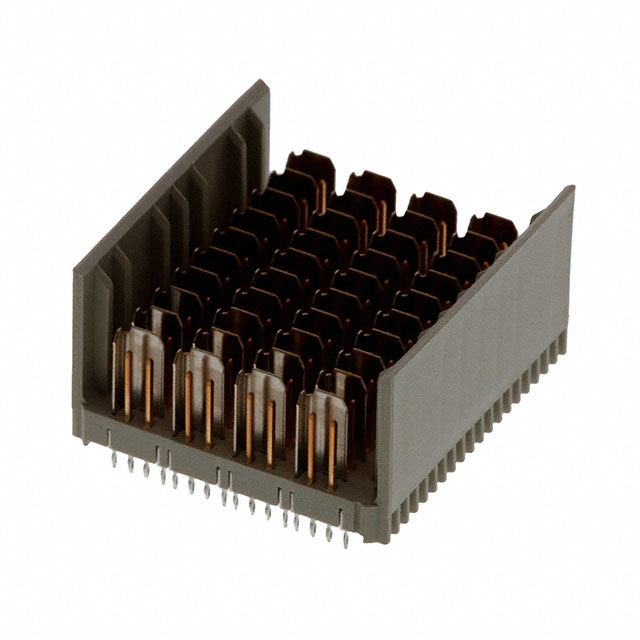

2170330-1
Or copy the link below:
- Mfr.Part #
- 2170330-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER 80POS PCB
- Stock
- 180
- In Stock ：
- 180
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Current Rating :
- 1.5A
- Max Current Rating :
- 1.5A
- Termination :
- Press-Fit
- Voltage - Rated :
- 250V
- Mounting Type :
- Through Hole
- Length :
- 24.9mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Operating Temperature :
- -65°C~105°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 80
- Number of Columns :
- 10
- Contact Material :
- Bronze
- Depth :
- 43.93mm
- RoHS Status :
- RoHS Compliant
- Mount :
- Through Hole
- Row Spacing :
- 1.5 mm
- Orientation :
- Straight
- Current Rating (Amps) :
- 0.700A
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Shrouding :
- Partially Shrouded
- Mating Alignment :
- With
- Published :
- 2013
- Material Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Packaging :
- Tube
- Housing Material :
- Thermoplastic
- Circuit Application :
- Signal
- Factory Lead Time :
- 8 Weeks
- Contact Plating :
- Tin
- Pitch :
- 0.098 2.50mm
- Number of Rows :
- 8
- Series :
- Z-Pack HM-ZD
- Connector Type :
- Header, Male Pins
- Sealable :
- No
- Contact Finish :
- Gold
- Datasheets
- 2170330-1
Z-PACK HM-Zd Series Header, Male Pins Press-Fit Gold 30.0μin 0.76μm 80 Positions Pitch: 0.098 2.50mm -65°C~105°C Tube Through Hole
2170330-1 Overview
The packaging contains Header, Male Pins.There is a Through Hole mounting type for the device.This product is packaged in a case marked Tube.Product number Z-PACK HM-Zd belongs to the Z-PACK HM-Zd Series.There is a Through Hole mount on the part.This device operates at a temperature of -65°C~105°C.
2170330-1 Features
Z-PACK HM-Zd series
2170330-1 Applications
There are a lot of TE Connectivity AMP Connectors
2170330-1 Backplane Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
