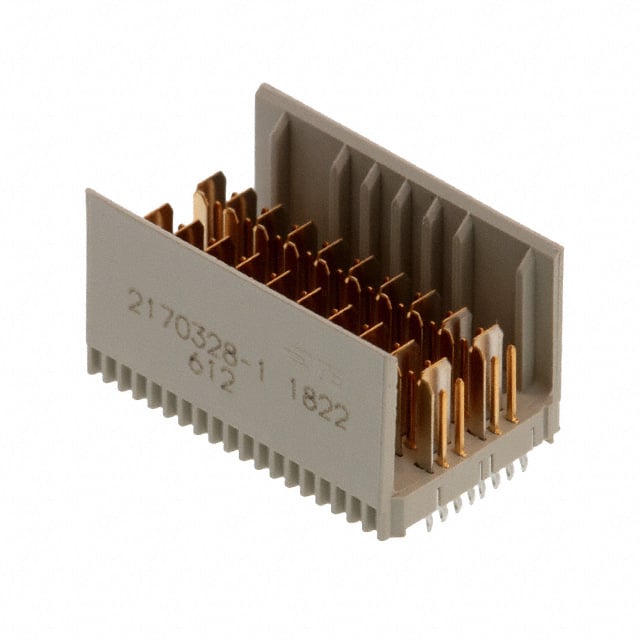

2170328-1
Or copy the link below:
- Mfr.Part #
- 2170328-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER HIGH SPEED 60POS PCB
- Stock
- 7,881
- In Stock ：
- 7,881
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Series :
- Z-Pack HM-ZD
- Number of Contacts :
- 40
- Number of Positions Loaded :
- All
- Contact Finish - Mating :
- NOT SPECIFIED
- IEC Conformance :
- No
- Contact Plating :
- Tin
- Housing Material :
- Thermoplastic
- RoHS Status :
- RoHS Compliant
- Connector Type :
- Header, Male Pins
- Connector Style :
- High Speed
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Columns :
- 10
- Voltage - Rated :
- 250V
- Published :
- 2012
- Packaging :
- Bulk
- Mount :
- Through Hole
- Factory Lead Time :
- 8 Weeks
- Pitch :
- 0.098 2.50mm
- MIL Conformance :
- No
- Filter Feature :
- No
- Number of Rows :
- 4
- Current Rating (Amps) :
- 0.700A
- Length :
- 24.9mm
- Operating Temperature :
- -65°C~105°C
- Material Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Number of Positions :
- 60
- Termination :
- Press-Fit
- Orientation :
- Straight
- Depth :
- 15.35mm
- Contact Material :
- Bronze
- Option :
- GENERAL PURPOSE
- Datasheets
- 2170328-1
Z-PACK HM-Zd Series Header, Male Pins Press-Fit 60 Positions Pitch: 0.098 2.50mm -65°C~105°C Bulk Through Hole
2170328-1 Overview
Packaging for this item is Header, Male Pins.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Z-PACK HM-Zd Series.Through Hole is used to mount the part.In this case, the device operates at -65°C~105°C Operating Temperature.
2170328-1 Features
Z-PACK HM-Zd series
2170328-1 Applications
There are a lot of TE Connectivity AMP Connectors
2170328-1 Backplane Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
