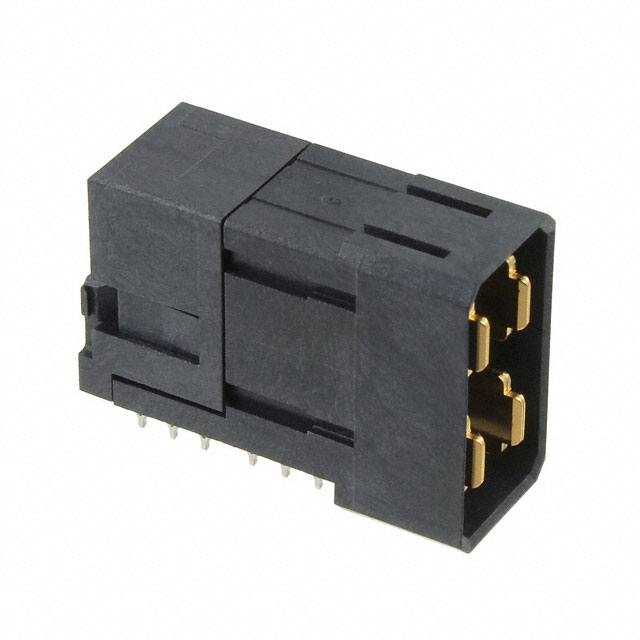

2169802-1
Or copy the link below:
- Mfr.Part #
- 2169802-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER BLADE PWR 4P EDGE MT
- Stock
- 22,309
- In Stock ：
- 22,309
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Data Rate :
- 25 Gbps
- Connector Type :
- Header, Male Blades
- Number of Power Positions :
- 12
- Termination :
- Press-Fit
- Row Spacing :
- 8.4 mm
- Hole Diameter :
- 723.9 µm
- Flammability Rating :
- UL94 V-0
- Housing Material :
- Glass
- Published :
- 2012
- Connector Style :
- Blade Power
- Series :
- Impact
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Contact Current Rating :
- 20A
- Contact Finish :
- Gold
- Contact Layout, Typical :
- 4 Power
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Plating Thickness :
- 1.27μm
- Number of Positions Loaded :
- All
- Orientation :
- Vertical
- Factory Lead Time :
- 11 Weeks
- Number of Positions :
- 4
- Color :
- Black
- Contact Plating :
- Gold, Tin
- Width :
- 11mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch :
- 5.2mm
- Length - Tail :
- 2.5mm
- Differential Signaling :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Packaging :
- Tray
- Operating Temperature :
- -55°C~ 85°C
- Length :
- 27.9654mm
- Height :
- 19.94916mm
- PCB Thickness :
- 1.6mm
- Underplate Material :
- Nickel
- Number of Columns :
- 2
- Datasheets
- 2169802-1
Impact Series Header, Male Blades Press-Fit Gold Black 30.0μin 0.76μm 4 Positions Pitch: 5.2mm -55°C~ 85°C Tray Board Edge, Through Hole, Right Angle
2169802-1 Overview
The product comes in a package of Header, Male Blades.Board Edge, Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Impact Series.It operates at an operating temperature of -55°C~ 85°C.
2169802-1 Features
Impact series
2169802-1 Applications
There are a lot of TE Connectivity AMP Connectors
2169802-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
