2169797-5
Or copy the link below:
- Mfr.Part #
- 2169797-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description

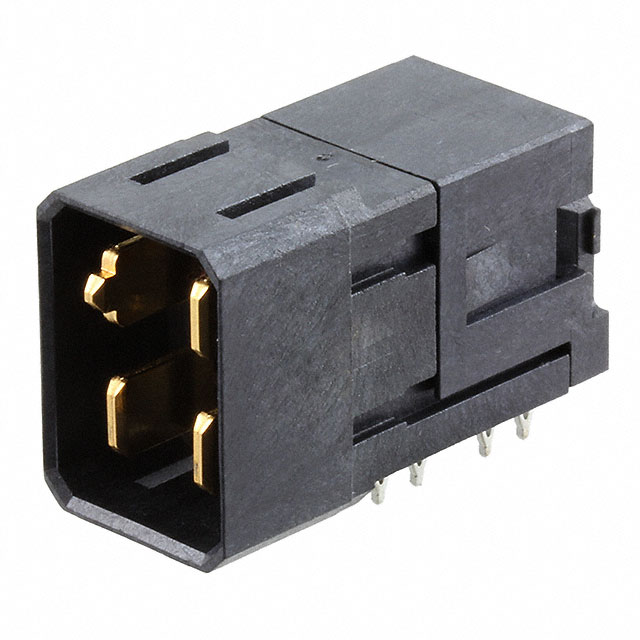

- CONN HEADER BLADE PWR 4P EDGE MT
- Stock
- 39,683
- In Stock ：
- 39,683
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Max Operating Temperature :
- 185°C
- Plating Thickness :
- 760 nm
- Contact Layout, Typical :
- 4 Power
- Number of Positions :
- 4
- PCB Thickness :
- 1.6mm
- Connector Style :
- Blade Power
- Material Flammability Rating :
- UL94 V-0
- Mount :
- Edge, Through Hole
- Series :
- Impact
- Factory Lead Time :
- 13 Weeks
- Number of Rows :
- 2
- Stackable :
- No
- Underplate Material :
- Nickel
- Termination :
- Press-Fit
- Length - Tail :
- 2.5mm
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Number of Columns :
- 2
- Differential Signaling :
- No
- Data Rate :
- 25 Gbps
- Row Spacing :
- 6.6 mm
- Orientation :
- Vertical
- Contact Current Rating :
- 15A
- Make First / Break Last :
- No
- Connector Type :
- Header, Male Blades
- Differential Pairs per Column :
- 3
- RoHS Status :
- RoHS Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Width :
- 11mm
- Flammability Rating :
- UL94 V-0
- Number of Power Positions :
- 8
- Packaging :
- Tray
- PCB Mounting Orientation :
- Vertical
- Min Operating Temperature :
- -67°C
- ELV :
- Compliant
- Height :
- 14.87932mm
- Contact Finish :
- Gold
- Color :
- Black
- Operating Temperature :
- -55°C~ 85°C
- Length :
- 23.97mm
- Housing Material :
- Glass
- Contact Style :
- Press-Fit
- Number of Positions Loaded :
- All
- Pitch :
- 5.2mm
- Published :
- 2013
- Hole Diameter :
- 723.9 µm
- Housing Color :
- Black
- Contact Plating :
- Gold, Tin
- Datasheets
- 2169797-5
Impact Series Header, Male Blades Press-Fit Gold Black 4 Positions Pitch: 5.2mm -55°C~ 85°C Tray Board Edge, Through Hole, Right Angle
2169797-5 Overview
The product is packaged in Header, Male Blades.This device is mounted in the Board Edge, Through Hole, Right Angle position.It has been determined that a Tray case is necessary to package the product.There is a product in the Impact Series.When the temperature is below 185°C, it is best to use it.A minimum operating temperature of -67°C is required for this device.Part Edge, Through Hole is mounted to the part.As a result, the device runs at -55°C~ 85°C Operating Temperature.
