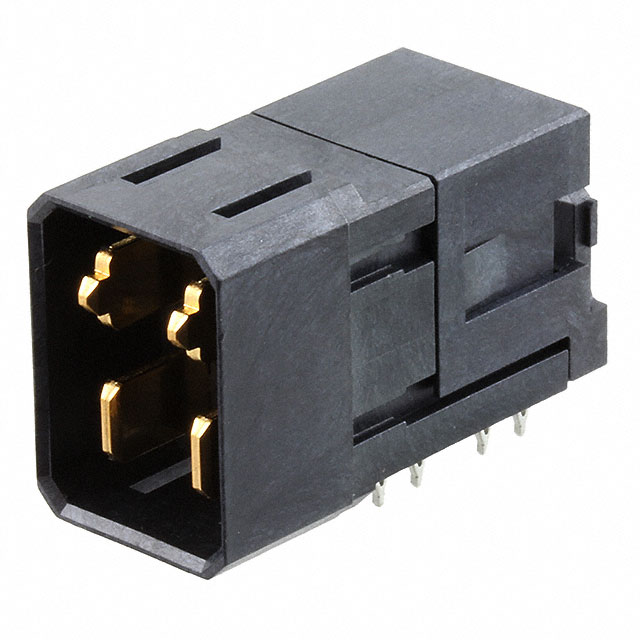

2169797-3
Or copy the link below:
- Mfr.Part #
- 2169797-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER BLADE PWR 4P EDGE MT
- Stock
- 30,425
- In Stock ：
- 30,425
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Contact Layout, Typical :
- 4 Power
- Number of Positions Loaded :
- All
- ELV :
- Compliant
- Number of Columns :
- 2
- Housing Material :
- Glass
- Stackable :
- No
- Color :
- Black
- Number of Power Positions :
- 8
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Contact Plating :
- Gold, Tin
- PCB Thickness :
- 1.6mm
- Data Rate :
- 25 Gbps
- Contact Style :
- Press-Fit
- Material Flammability Rating :
- UL94 V-0
- Factory Lead Time :
- 11 Weeks
- Differential Signaling :
- No
- Mounting Type :
- Board Edge, Through Hole, Right Angle
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -67°C
- PCB Mounting Orientation :
- Vertical
- Length - Tail :
- 2.5mm
- Underplate Material :
- Nickel
- Hole Diameter :
- 723.9 µm
- Housing Color :
- Black
- Number of Rows :
- 2
- Differential Pairs per Column :
- 3
- Orientation :
- Vertical
- Max Operating Temperature :
- 185°C
- Plating Thickness :
- 760 nm
- Termination :
- Press-Fit
- Connector Type :
- Header, Male Blades
- Series :
- Impact
- Pitch :
- 5.2mm
- Length :
- 23.97mm
- Number of Positions :
- 4
- RoHS Status :
- RoHS Compliant
- Mount :
- Edge, Through Hole
- Make First / Break Last :
- No
- Width :
- 11mm
- Operating Temperature :
- -55°C~ 85°C
- Connector Style :
- Blade Power
- Packaging :
- Tray
- Published :
- 2012
- Row Spacing :
- 6.6 mm
- Height :
- 14.87932mm
- Contact Current Rating :
- 15A
- Datasheets
- 2169797-3
Impact Series Header, Male Blades Press-Fit Gold Black 4 Positions Pitch: 5.2mm -55°C~ 85°C Tray Board Edge, Through Hole, Right Angle
2169797-3 Overview
A Header, Male Blades package is included with it.Its mounting type is Board Edge, Through Hole, Right Angle.Packaging is performed using a Tray case.It is part of the Impact Series of products.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -67°C at all times.Edge, Through Hole mounts the part.There is no operating temperature for the device.
2169797-3 Features
Impact series
2169797-3 Applications
There are a lot of TE Connectivity AMP Connectors
2169797-3 Backplane Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
