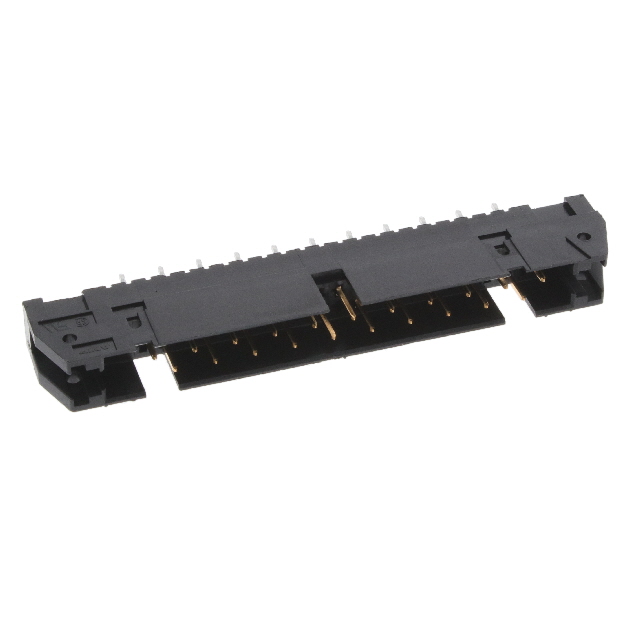

2169791-1
Or copy the link below:
- Mfr.Part #
- 2169791-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 44POS 2.54MM
- Stock
- 298
- In Stock ：
- 298
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions Loaded :
- 21
- Operating Temperature :
- -65°C~105°C
- Contact Length - Post :
- 0.174 4.42mm
- Row Spacing - Mating :
- 0.100 (2.54mm)
- RoHS Status :
- RoHS Compliant
- PCB Mount Retention :
- With
- Number of Positions :
- 44
- Contact Finish - Mating :
- Gold or Gold-Palladium
- Contact Finish - Post :
- Tin
- Contact Length - Mating :
- 0.240 6.10mm
- Termination :
- Press-Fit, Solder
- Current Rating (Amps) :
- 1A per Contact
- Contact Material :
- Phosphor Bronze
- Factory Lead Time :
- 9 Weeks
- Packaging :
- Bulk
- Lead Free :
- Lead Free
- Series :
- AMP-Latch
- Orientation :
- Vertical
- Insulation Color :
- Black
- Style :
- Board to Cable/Wire
- Published :
- 2011
- Feature :
- Keying Slot, Mounting Flange
- Mating Connector Lock :
- With
- Contact Type :
- Male Pin
- Pitch - Mating :
- 0.100 2.54mm
- Current Rating :
- 1A
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Insulation Height :
- 0.549 13.94mm
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 250VAC
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Connector Type :
- Header
- Number of Contacts :
- 44
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Sealable :
- No
- Material Flammability Rating :
- UL94 V-0
- Number of Rows :
- 2
- Contact Shape :
- Square
- Overall Contact Length :
- 0.703 17.86mm
- Fastening Type :
- Push-Pull
- Shrouding :
- Shrouded - 4 Wall
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 2169791-1
AMP-Latch Series 2-Row Header Press-Fit, Solder Phosphor Bronze Bulk Through Hole Gold or Gold-Palladium 44-Position Board to Cable/Wire 0.549 13.94mm Height
2169791-1 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMP-Latch Series.There are a number of advantages to its Keying Slot, Mounting Flange feature.As a result, the device runs at -65°C~105°C Operating Temperature.
2169791-1 Features
AMP-Latch series
2169791-1 Applications
There are a lot of TE Connectivity AMP Connectors
2169791-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
