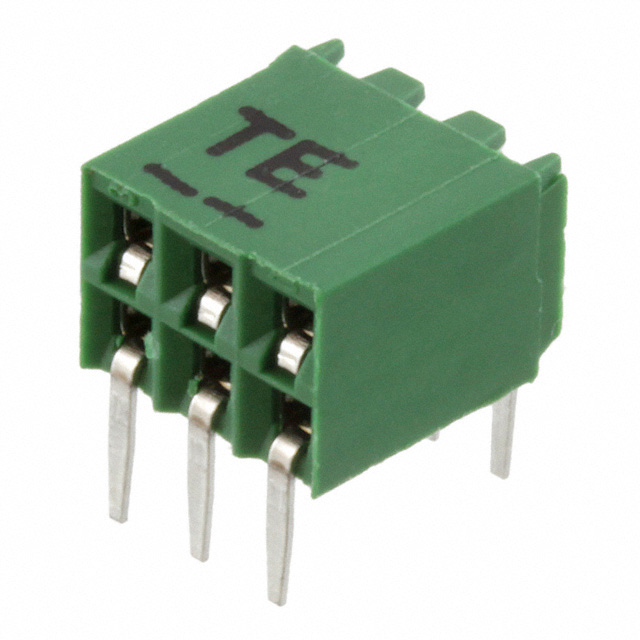

216604-3
Or copy the link below:
- Mfr.Part #
- 216604-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 6POS 0.1 GOLD PCB R/A
- Stock
- 31
- In Stock ：
- 31
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Resistance :
- 12mOhm
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Contact Finish - Post :
- Tin
- Number of Positions :
- 6
- Insulation Material :
- Polyester, Glass Filled
- Height :
- 5.7912mm
- Contact Finish - Mating :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- DIN Conformance :
- No
- Contact Type :
- Female Socket
- Length :
- 7.62mm
- Depth :
- 7.62mm
- ECCN Code :
- EAR99
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Contact Gender :
- FEMALE
- JESD-609 Code :
- e3
- Insulation Resistance :
- 5000000000Ohm
- Stackable :
- yes
- Connector Type :
- Receptacle
- PCB Contact Pattern :
- RECTANGULAR
- Style :
- Board to Board
- Mount :
- Through Hole
- REACH SVHC :
- Unknown
- PCB Thickness :
- 1.6mm
- Orientation :
- RIGHT ANGLE
- Contact Length - Post :
- 0.126 3.20mm
- Number of Conductors :
- ONE
- Insulation Height :
- 0.228 5.80mm
- Fastening Type :
- Push-Pull
- Published :
- 2010
- Option :
- GENERAL PURPOSE
- Number Of PCB Rows :
- 2
- Packaging :
- Tray
- Row Spacing - Mating :
- 0.100 (2.54mm)
- PCB Mount Retention :
- Without
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 2A
- Mating Contact Pitch :
- 0.1 inch
- Housing Material :
- Polyester
- Dielectric Withstanding Voltage :
- 750VAC V
- Number of Positions Loaded :
- All
- Lead Length :
- 3.2mm
- Contact Shape :
- Square
- IEC Conformance :
- No
- Rated Current (Signal) :
- 3A
- Plating Thickness :
- 2.5μm
- Housing Color :
- Black
- Pbfree Code :
- yes
- Factory Lead Time :
- 31 Weeks
- Termination :
- Solder
- Reference Standard :
- UL
- MIL Conformance :
- No
- Number of Rows :
- 2
- Length - Tail :
- 3.2mm
- PCB Mounting Orientation :
- RIGHT ANGLE
- Contact Plating :
- Gold, Tin
- Max Operating Temperature :
- 125°C
- Number of Contacts :
- 3
- Filter Feature :
- No
- Mounting Type :
- Through Hole, Right Angle
- Pitch - Mating :
- 0.100 2.54mm
- Mixed Contacts :
- No
- Contact Current Rating :
- 3A
- UL Flammability Code :
- 94V-0
- Min Operating Temperature :
- -65°C
- Sealable :
- No
- RoHS Status :
- RoHS Compliant
- Series :
- AMPMODU HV 190
- Insulation Color :
- Green
- Reliability :
- COMMERCIAL
- Contact Material :
- Phosphor Bronze
- Datasheets
- 216604-3
2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tray Gold Polyester, Glass Filled 6 Positions Female Socket
216604-3 Overview
It comes in Receptacle packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.It belongs to the AMPMODU HV 190 Series of products.It's best to use it when the temperature is below 125°C.This device must operate at a minimum temperature of -65°C.The part is mounted by Through Hole.
216604-3 Features
AMPMODU HV 190 series
216604-3 Applications
There are a lot of TE Connectivity AMP Connectors
216604-3 Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
