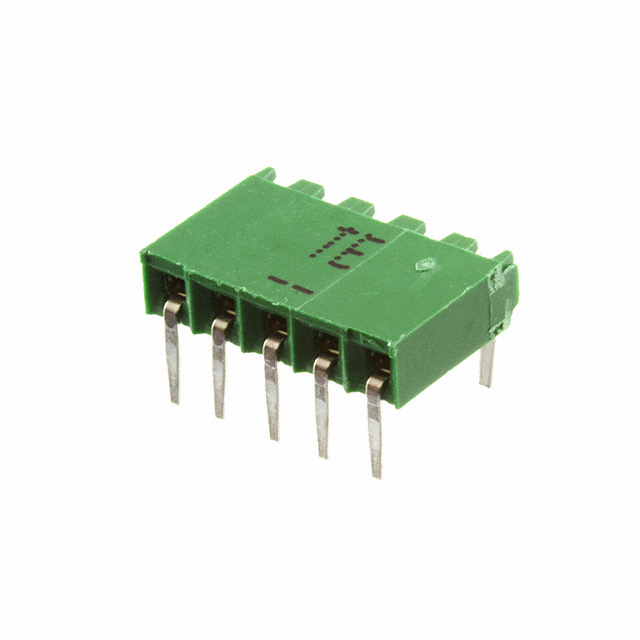

216602-5
Or copy the link below:
- Mfr.Part #
- 216602-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS 0.1 GOLD PCB R/A
- Stock
- 5,685
- In Stock ：
- 5,685
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Lifecycle Status :
- ACTIVE (Last Updated: 5 months ago)
- Packaging :
- Tray
- ECCN Code :
- EAR99
- Lead Length :
- 3.2mm
- Stackable :
- yes
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- Termination :
- Solder
- Length - Tail :
- 3.2mm
- Height :
- 3.2mm
- Connector Type :
- Receptacle
- ELV :
- Compliant
- Pitch - Mating :
- 0.100 2.54mm
- Contact Type :
- Female Socket
- Insulation Color :
- Green
- Plating Thickness :
- 2.5μm
- Flammability Rating :
- UL94 V-0
- IEC Conformance :
- No
- Contact Plating :
- Gold, Tin
- Number of Rows :
- 1
- PCB Thickness :
- 1.6mm
- UL Flammability Code :
- 94V-0
- Reliability :
- COMMERCIAL
- Fastening Type :
- Push-Pull
- Series :
- AMPMODU HV 190
- Durability :
- 200 Cycles
- JESD-609 Code :
- e3
- Number of Conductors :
- ONE
- Option :
- GENERAL PURPOSE
- Row Spacing :
- 7.62 mm
- Contact Finish - Mating :
- Gold
- Sealable :
- No
- Contact Current Rating :
- 3A
- Number of Positions :
- 5
- Contact Material :
- Phosphor Bronze
- Depth :
- 7.62mm
- Mounting Type :
- Through Hole, Right Angle
- Current Rating :
- 3A
- Lead Pitch :
- 2.54mm
- Contact Resistance :
- 12mOhm
- Number Of PCB Rows :
- 2
- Contact Finish - Post :
- Tin
- RoHS Status :
- RoHS Compliant
- Filter Feature :
- No
- Rated Current (Signal) :
- 3A
- Housing Color :
- Black
- Orientation :
- RIGHT ANGLE
- PCB Mount Retention :
- Without
- Mixed Contacts :
- No
- Insulation Height :
- 0.126 3.20mm
- Housing Material :
- Polyester
- Contact Shape :
- Square
- MIL Conformance :
- No
- PCB Contact Pattern :
- RECTANGULAR
- Length :
- 12.7mm
- DIN Conformance :
- No
- Mount :
- Through Hole
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions Loaded :
- All
- Reference Standard :
- UL
- Insulation Material :
- Polyester, Glass Filled
- Material Flammability Rating :
- UL94 V-0
- REACH SVHC :
- No SVHC
- Style :
- Board to Board
- Contact Gender :
- FEMALE
- Published :
- 2010
- Max Operating Temperature :
- 125°C
- Contact Length - Post :
- 0.126 3.20mm
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Pbfree Code :
- yes
- Min Operating Temperature :
- -65°C
- PCB Mounting Orientation :
- RIGHT ANGLE
- Factory Lead Time :
- 31 Weeks
- Datasheets
- 216602-5
1 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tray Gold Polyester, Glass Filled 5 Positions Female Socket
216602-5 Overview
Packaging is in the form of Receptacle.This device has a Through Hole, Right Angle mounting type.An orange Tray case is used to package the product.Specifically, it is one of the products in the AMPMODU HV 190 Series.If the temperature is below 125°C, it's best to use it.-65°C is the minimum temperature for this device.There is a mounting hole at Through Hole.
216602-5 Features
AMPMODU HV 190 series
216602-5 Applications
There are a lot of TE Connectivity AMP Connectors
216602-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
