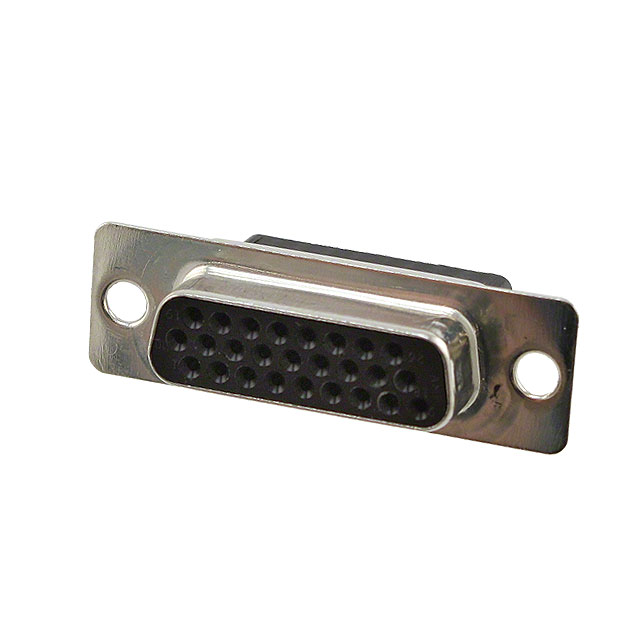

216165-1
- Mfr.Part #
- 216165-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING RCPT 26POS
- Stock
- 500
- In Stock :
- 500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Number of Rows :
- 3
- Flammability Rating :
- UL94 V-0
- Flange Feature :
- Housing/Shell (Unthreaded)
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Mounting Type :
- Free Hanging (In-Line)
- Published :
- 2002
- Orientation :
- Straight
- Insulation Resistance :
- 5000000000Ohm
- Contact Design :
- PREASSEM CONN
- Plating :
- Tin
- Withdrawl Force-Min :
- .2085 N
- Length :
- 39.1mm
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- REACH SVHC :
- Unknown
- Total Number of Contacts :
- 26
- MIL Conformance :
- No
- IEC Conformance :
- No
- Operating Temperature (Max) :
- 105°C
- Connector Type :
- Receptacle for Female Contacts
- Shell Finish :
- Tin
- ECCN Code :
- EAR99
- Height :
- 12.5mm
- Note :
- Contacts Not Included
- Sealable :
- No
- RoHS Status :
- RoHS Compliant
- Dielectric Withstanding Voltage :
- 1000VAC V
- Mating Connector Lock :
- With
- Color :
- Black
- Connector Style :
- D-Sub, High Density
- Lead Free :
- Not Applicable
- Package / Case :
- Metal
- UL Flammability Code :
- 94V-0
- Reference Standard :
- UL, CSA
- Body Material :
- Steel
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- ELV :
- Compliant
- Insertion Force-Max :
- 2.224 N
- Number of Positions :
- 26
- Factory Lead Time :
- 19 Weeks
- Contact Type :
- Signal
- Depth :
- 12.5mm
- Mixed Contacts :
- No
- Operating Temperature (Min) :
- -55°C
- Rated Current (Signal) :
- 1.9A
- Reliability :
- COMMERCIAL
- Packaging :
- Bulk
- Series :
- AMPLIMITE HDP-22
- Contact Resistance :
- 15mOhm
- Shell Material, Finish :
- Steel, Tin Plated
- Gender :
- Receptacle
- Empty Shell :
- No
- Shell Size, Connector Layout :
- 2 DA A High Density
- Mount :
- Cable, Free Hanging
- Termination Type :
- Solder
- Body Breadth :
- 0.492 inch
- Dielectric Material :
- Polyamide (PA), Nylon, Glass Filled
- Filter Feature :
- No
- Datasheets
- 216165-1
