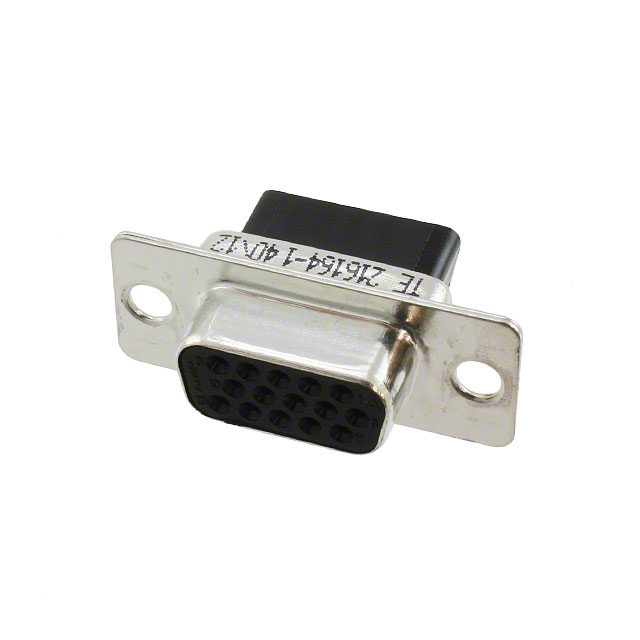

216164-1
Or copy the link below:
- Mfr.Part #
- 216164-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN D-SUB HD HOUSING RCPT 15POS
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- D-Sub, D-Shaped Connector Housings
- Termination :
- Crimp
- Plating :
- Tin
- Shell Finish :
- Tin
- Contact Shape :
- Round
- Number of Rows :
- 3
- Dielectric Material :
- Polyamide (PA), Nylon, Glass Filled
- Packaging :
- Bulk
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Body Breadth :
- 0.492 inch
- Mixed Contacts :
- No
- Shell Size, Connector Layout :
- 1 DE E High Density
- DIN Conformance :
- No
- Width :
- 12.5mm
- Shell Material, Finish :
- Steel, Tin Plated
- Option :
- GENERAL PURPOSE
- Depth :
- 17.9mm
- Mating Connector Lock :
- Without
- Lead Free :
- Not Applicable
- REACH SVHC :
- No SVHC
- Insulation Material :
- Nylon
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Filter Feature :
- No
- Connector Style :
- D-Sub, High Density
- Connector Type :
- Receptacle for Female Contacts
- Row Spacing :
- 1.9558 mm
- Contact Type :
- Signal
- Color :
- Black
- Reliability :
- COMMERCIAL
- ELV :
- Compliant
- Orientation :
- Straight
- Mount :
- Free Hanging
- Flange Feature :
- Housing/Shell (Unthreaded)
- Gender :
- Receptacle
- Shell Material :
- Steel
- IEC Conformance :
- No
- Package / Case :
- Metal
- Factory Lead Time :
- 12 Weeks
- Series :
- AMPLIMITE HDP-22
- MIL Conformance :
- No
- Housing Material :
- Polyamide
- Mounting Type :
- Free Hanging (In-Line)
- Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 15
- Published :
- 2002
- Length :
- 30.8mm
- Pbfree Code :
- yes
- ECCN Code :
- EAR99
- Empty Shell :
- No
- Note :
- Contacts Not Included
- Number of Positions :
- 15
- RoHS Status :
- RoHS Compliant
- Datasheets
- 216164-1
216164-1 datasheet pdf and D-Sub, D-Shaped Connectors - Housings product details from TE Connectivity AMP Connectors stock available at Xinshop
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
