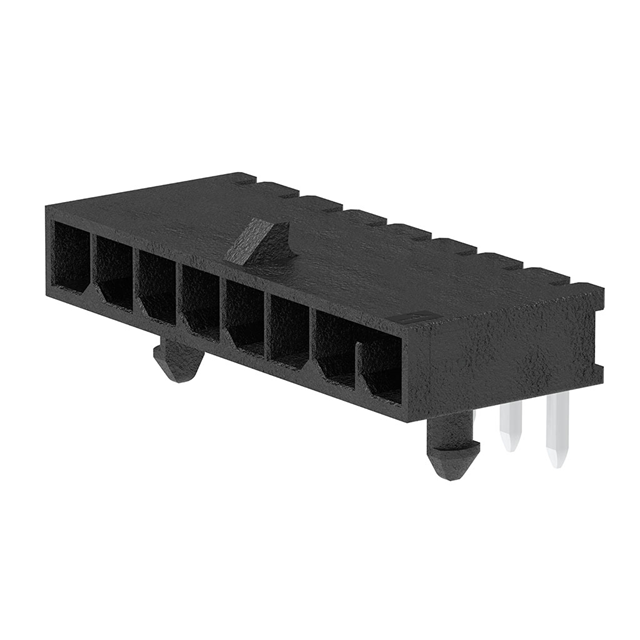

2157602006

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Contact Length - Mating :

-

Termination Style :

Solder Pin

Pitch - Mating :

0.118 (3.00mm)

Termination :

Solder

Ingress Protection :

-

Mounting Angle :

RIGHT ANGLE

Insulation Material :

Liquid Crystal Polymer (LCP), Glass Filled

Mounting Type :

Through Hole, Right Angle

Applications :

-

Fastening Type :

Locking Ramp

Features :

Board Lock, Glow Wire Compliant

Number of Positions Loaded :

All

Flammability Rating :

UL 94 V-0

Contact Type :

Male Pin

Connector Type :

Header

Overall Contact Length :

-

Voltage Rating :

600VAC/DC

Contact Finish - Mating :

Gold

Contact Finish Thickness - Post :

-

Minimum Operating Temperature :

- 40 C

Row Spacing - Mating :

-

Contact Shape :

Square

Insulation Height :

0.173 (4.40mm)

Mounting Style :

PCB Mount

Current Rating (Amps) :

Varies by Wire Gauge

Contact Finish Thickness - Mating :

15.0μin (0.38μm)

Type :

Header Assemblies

Material Flammability Rating :

UL94 V-0

Number of Positions :

6

Series :

Micro-Fit+ 215760

Insulation Resistance :

1000 MOhms

Subcategory :

Headers and Wire Housings

Mated Stacking Heights :

-

Shrouding :

Shrouded - 4 Wall

Contact Length - Post :

0.125 (3.18mm)

Maximum Operating Temperature :

+ 105 C

Housing Gender :

Receptacle

Product Type :

Headers and Wire Housings

Insulation Color :

Black

Contact Finish - Post :

Tin

Contact Plating :

Gold Plated Contacts

Contact Material :

COPPER ALLOY

Number of Rows :

1

Product Status :

Active

Pitch :

3 mm

Application :

Wire-to-Board, Power

Base Product Number :

215760

Package :

Tray

Operating Temperature :

-40°C ~ 105°C

Product :

Headers

Housing Color :

Black

Style :

Board to Cable/Wire
