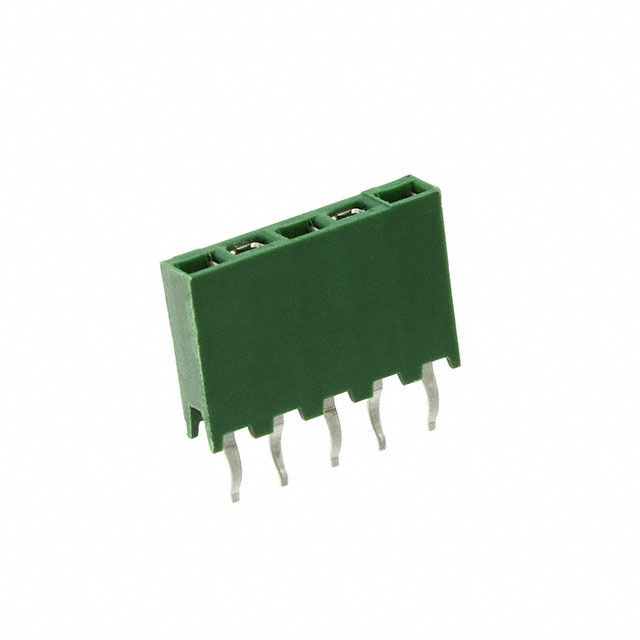

215299-5
Or copy the link below:
- Mfr.Part #
- 215299-5
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 5POS 0.1 GOLD PCB
- Stock
- 3,423
- In Stock ：
- 3,423
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Contact Finish Thickness - Mating :
- 31.5μin 0.80μm
- Contact Plating :
- Tin, Gold
- PCB Contact Pattern :
- RECTANGULAR
- Stackable :
- yes
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- ELV :
- Compliant
- Number of Positions :
- 5
- Number of Positions Loaded :
- All
- Material Flammability Rating :
- UL94 V-0
- Insulation Height :
- 0.335 8.51mm
- Factory Lead Time :
- 31 Weeks
- Mounting Type :
- Through Hole
- Orientation :
- Vertical
- Rated Current (Signal) :
- 3A
- MIL Conformance :
- No
- ECCN Code :
- EAR99
- Max Operating Temperature :
- 105°C
- Connector Type :
- Receptacle
- Min Operating Temperature :
- -55°C
- Series :
- AMPMODU HV-100
- Durability :
- 200 Cycles
- Mount :
- Through Hole
- Depth :
- 2.52mm
- Number Of PCB Rows :
- 1
- Housing Color :
- Black, Green
- Body Breadth :
- 0.099 inch
- IEC Conformance :
- No
- Length :
- 12.7mm
- Contact Shape :
- Square
- Housing Material :
- Polyester
- Contact Finish - Mating :
- Gold
- Insulation Color :
- Green
- Number of Rows :
- 1
- Lead Length :
- 3.1mm
- Reference Standard :
- UL, CSA
- Sealable :
- No
- Contact Current Rating :
- 3A
- UL Flammability Code :
- 94V-0
- Current Rating :
- 3A
- Pbfree Code :
- yes
- Number of Conductors :
- ONE
- Withdrawl Force-Min :
- .278 N
- Contact Finish - Post :
- Tin
- JESD-609 Code :
- e3
- Contact Resistance :
- 12mOhm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Option :
- GENERAL PURPOSE
- Published :
- 2008
- RoHS Status :
- RoHS Compliant
- Style :
- Board to Board
- Mixed Contacts :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Type :
- Female Socket
- Pitch - Mating :
- 0.100 2.54mm
- PCB Mount Retention :
- With
- Height :
- 8.5mm
- Length - Tail :
- 3.1mm
- Reliability :
- COMMERCIAL
- Insertion Force-Max :
- 2.224 N
- Insulation Material :
- Polyester, Glass Filled
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- DIN Conformance :
- No
- Termination :
- Kinked Pin, Solder
- Plating Thickness :
- 4μm
- Contact Length - Post :
- 0.122 3.10mm
- Filter Feature :
- No
- Packaging :
- Tray
- Fastening Type :
- Push-Pull
- PCB Thickness :
- 1.6mm
- Datasheets
- 215299-5
1 Rows Receptacle Kinked Pin, Solder Phosphor Bronze Through Hole Tray Gold Polyester, Glass Filled 5 Positions Female Socket
215299-5 Overview
This product is packaged in a Receptacle box.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the AMPMODU HV-100 Series.Use it below 105°C.A minimum temperature of -55°C must be maintained for the operation of this device.By Through Hole, the part is mounted.
215299-5 Features
AMPMODU HV-100 series
215299-5 Applications
There are a lot of TE Connectivity AMP Connectors
215299-5 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
